JIS F7351 20A 5K SDNR Valve

1.  The flanges shall conform to nominal pressure 5K of JIS B2210

2. JIS F7351 5K for nominal dia 20 shall be made Botled Bonnet Type

3. Materials


(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hend weel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece: Brass

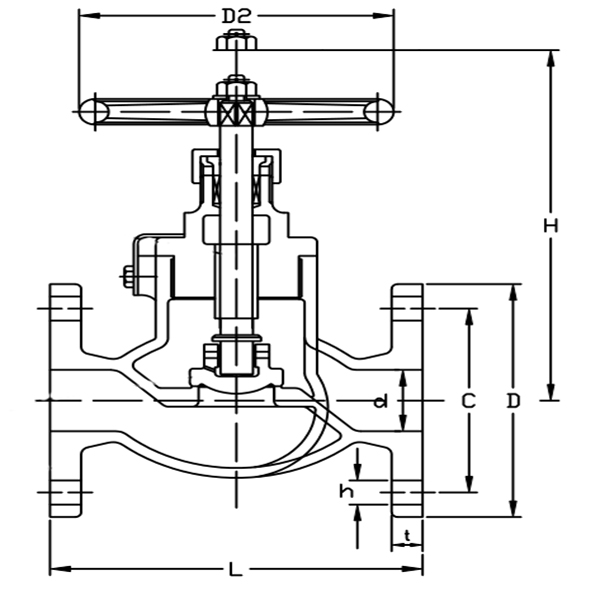

    4. Dimensions
