Quantity: 0 Pieces |
Size: 125A |
Pressure: 5K |
Body Material: Cast Steel |
Type: Straight |
The flanges shall conform to nominal pressure 5K of JIS B 2210
The name plate shall be specified by purchaser as required
Materials:
(1). Body: Cast Steel;
(2). Bonnet: Cast Steel;
(3). Hand wheel: Cast Iron;
(4). Disc: Bronze/Stainless Steel;
(5). Body Seat: Bronze/Stainless Steel;
(6). Disc Gland: Bronze/Stainless Steel;
(7). Stem: Bronze/Stainless Steel;
(8). Washer : Alloy Tool Steel;
(9). Bush: Bronze;
(10). Packing Ring: Bronze/Stainless Steel;
(11). Packing Gland: Branze;
(12). Bonnet Bolt: Rolled Steel;
(13). Packing Glang Bolt: Rolled Steel;
(14). Bonnet Nut: Rolled Steel;
(15). Packing Gland Nut: Rolled Steel;
(16). Handle Nut: Brass;
(17). Set Screw:Rolled Steel;
(18). Split Pin: Brass Wire;
(19). Disc Stopper: Brass Plate/Stainless Steel;
(20). Packing: Asbestos;
(21). Gasket: Asbestos;
(22). Name Plate: Brass Plate

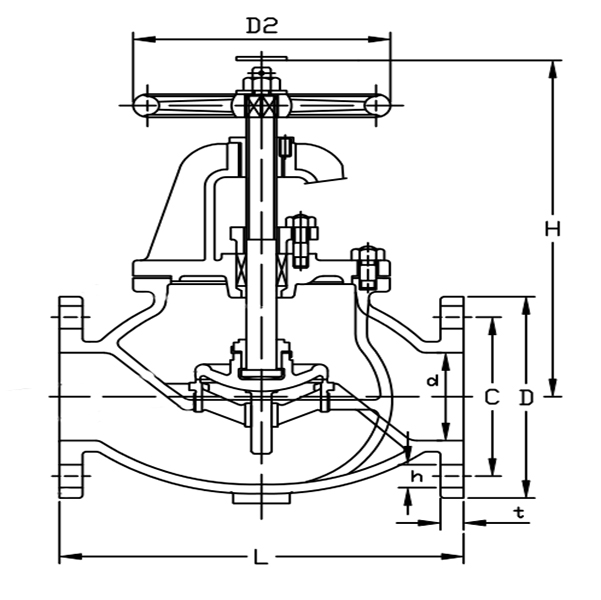

4. Dimensions
Type | Size | L1 | D | C | No. | h | t | H | D2 |
F7311 5K | 125 | 190 | 265 | 230 | 8 | 19 | 18 | 380 | 280 |
