| Quantity: 0 Pieces |
| Size: 40A |
| Pressure: 16K |
| Body Material: Stainless Steel |
| Type: Swing Type |
The flanges shall conform to nominal pressure 16K JIS B2240
Materials:
(1). Body: Stainless Steel;
(2). Bonnet: Stainless Steel;
(3). Disc: Stainless Steel;
(4). Hinge Pin: Stainless Steel;
(5). Plug: Brass/Stainless Steel

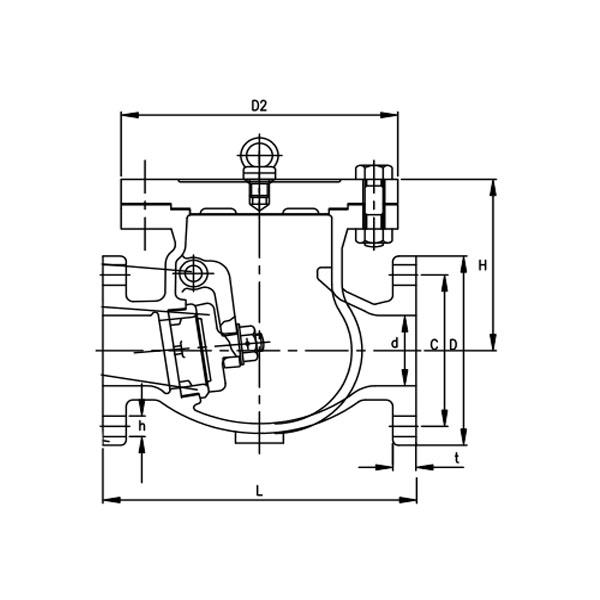

3. Dimensions
Type | Size | L1 | D | C | No. | h | t | H | D2 |
F7371 16K | 40 | 140 | 120 | 95 | 4 | 15 | 12 | 93 | 46 |
