| Quantity:0 Pieces |
| Impeller Dia.: 46cm |
| Air flow rate:7000~19000/m3/h |
| Total Pressure: 560~2320 Pa |
| Type: Centrifugal Fans |
JCL-46 Marine Or Navy Centrifugal Fan
The JCL-46 centrifugal anticorrosive fan Marine fan small size, light weight, low noise, low vibration, good air tightness, small dynamic torque, anti swing, vibration and impact strong concessions reasonable, cost-effective
Drawing and Dimensions
Type | Flow rate m³/h | Total pressure Pa | Static pressure Pa | Speed r/min | Motor | A | A₁ | A₂ | A₃ | B | B₁ | B₂ | B₃ | D₃ | D₁ | ||
Freq Hz | Power Kw | Type | 320 | 396 | 365 | 270 | 440 | 516 | 480 | 360 | Ø470 | Ø545 | |||||
JCL-46 | 7000 | 710 | 600 | 970 | 50 | 4 | Y132M₁-6H | ||||||||||
8000 | 710 | 560 | |||||||||||||||
10000 | 660 | 430 | |||||||||||||||
1100 | 560 | 340 | |||||||||||||||
10500 | 1620 | 1350 | 1460 | 11 | Y160M₂-6H | ||||||||||||
12000 | 1610 | 1270 | |||||||||||||||
15000 | 1599 | 980 | |||||||||||||||
16500 | 1280 | 770 | |||||||||||||||
8400 | 1020 | 860 | 1160 | 60 | 5.5 | Y180M-4H | |||||||||||
9500 | 1020 | 810 | |||||||||||||||
12000 | 950 | 620 | |||||||||||||||
13000 | 810 | 490 | |||||||||||||||
12500 | 2320 | 1940 | 1750 | 18.5 | Y160L-4H | ||||||||||||
14000 | 2310 | 1830 | |||||||||||||||
18000 | 2160 | 1410 | |||||||||||||||
19000 | 1830 | 1100 | |||||||||||||||
Type | Motor type | n1*d1 | n2*d2 | 4-K | L₁ | L₂ | L₃ | L₄ | h | h₁ | h₂ | H | M₁ | M | L | Weight ≈㎏ |
JCL-46 | Y132M₁-6H | 12-Ø12 | 14-Ø12 | 4-Ø12 | 210 | 258 | 178 | 216 | 132 | 373 | 286 | 917 | 360 | 800 | 803 | 139 |
Y160M₂-6H | 4-Ø15 | 278 | 210 | 254 | 160 | 891 | 189 | |||||||||
Y180M-4H | 4-Ø12 | 258 | 178 | 216 | 132 | 803 | 150 | |||||||||
Y160L-4H | 4-Ø15 | 291 | 241 | 279 | 180 | 953 | 248 |

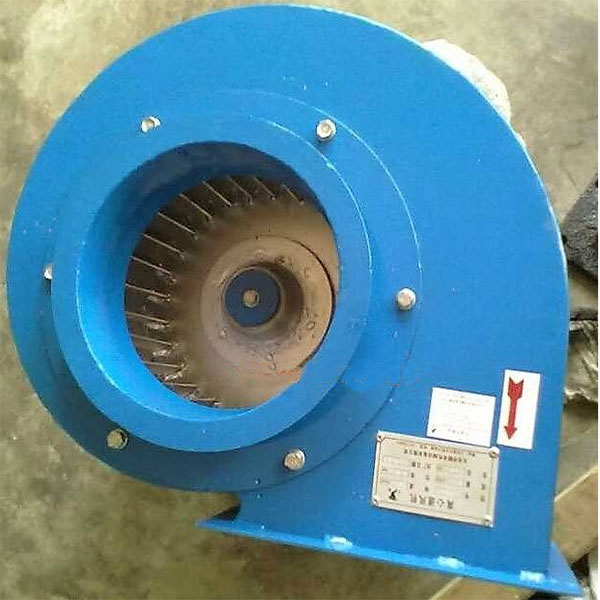

Picture of JCL-46 Marine Or Navy Centrifugal Fan
