JCL-24 Marine Or Navy Centrifugal Fan

Quantity:1 Pieces

Impeller Dia.: 24cm

Structure: Horizontal

Impeller Material: Aluminum Alloy

Type: Centrifugal Fans

Contact Now

Download Product Catalog

Product Description

Send your message to this supplier

JCL-24 Marine Or Navy Centrifugal Fan.jpg

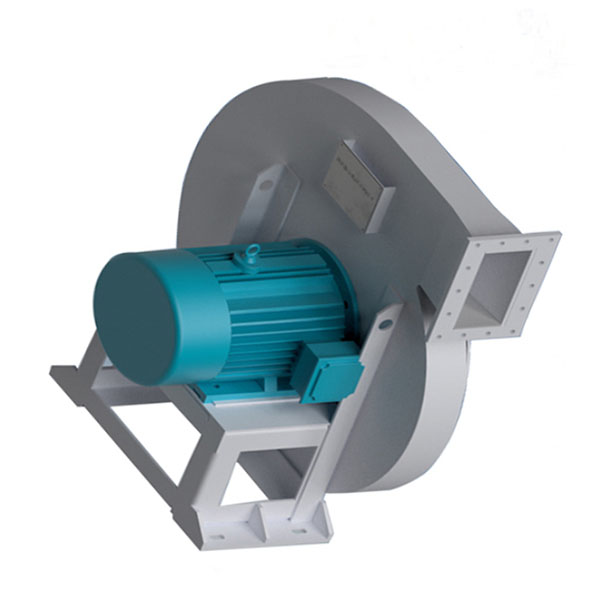

JCL-24 Marine Or Navy Centrifugal Fan

The ventilator can be made for left or right rotation: Left rotation-viewed from the motor side, the vane wheel rotates anti clock-wise and indicated as “L”.
Right rotation-viewed from the motor side, the vane wheel rotates clockwise and indicated as “R”.
The outlet position of ventilator, according to the rotating direction of vane wheel, is made into the following main types. In conformity with the requirement, the outlet position is allowed to use other types, the step angle of which is 30°or 22.5°.

Drawing and Dimensions

JCL-24 Marine Or Navy Centrifugal Fan2.jpg

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁
					Freq Hz	Power Kw	Type	175	240	210	100	225	288	260	170	Ø250	Ø314
JCL-24	1350	480	430	1460	50	0.55	Y801-4H
	1500	410	340
	2000	360	250
	2200	340	180
	2700	1660	1400	2920		3	Y100L-2H
	3000	1640	1370
	4000	1560	1080
	4400	1360	710
	1600	600	500	1750	60	1.1	Y90S-4H
	1800	590	490
	2400	570	390
	2600	490	250
	3200	2390	2010	3500		5.5	Y132S₁-2H
	3600	2370	1970
	4800	2090	1410
	5200	1950	1020

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-24	Y801-2H	8-Ø10	10-Ø12	4-Ø10	131	144	100	125	80	194.5	156.5	495	195	428	479	50
	Y100L-2H			4-Ø12		157	140	160	100						554	58
	Y90S-4H			4-Ø10		144	100	124	80						479	60
	Y132S₁-2H			4-Ø12		183	140	216	132						629	89
