HDAV005 Globe Valve
  • HDAV005 Globe Valve
HDAV005 Globe Valve

HDAV005 Globe Valve

Quantity: 0 Pieces
Size: DN50
Pressure: 3.0 MPa
Body Material: Cast Steel
Type: Shell Test
  1. Valve specification sheet:

(1). Faca to Face: JIS B2002;

(2). Flanges Dimension: JIS B2210;

(3). Basic Desing: JIS B2081;

(4). Inspection & Testing: JIS B2003;

(5). Body: 12、24、38 kgf / cm²

(6). Seat: 8、15、24  kgf / cm²

   2. Remark:

(1). The Flange connection will be adjusted by purchaser`s requirement.

(2). The name plate shall be specified by purchaser as required.

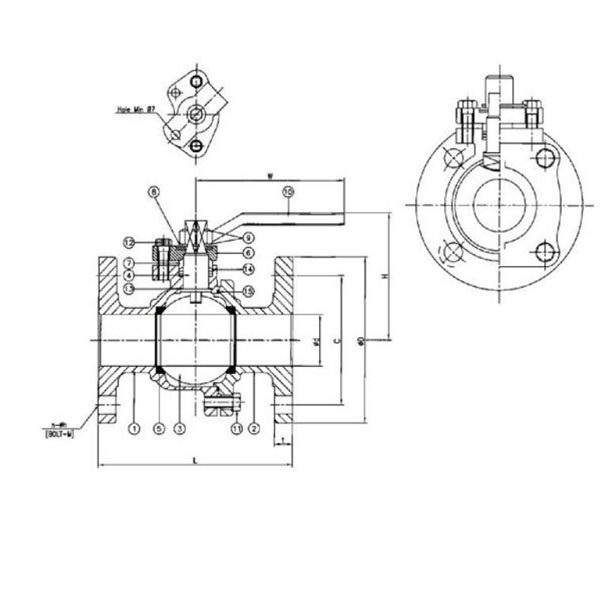

   3. Dimensions

DN

d

C

D

H

L

W

t

N-h

50

50

120

155

135

178

233

16

8-19

HDAV005 Globe Valve .jpgHDAV005 Globe Valve .jpg
