GB594 DN25 Male Thread Stop Valve
  • GB594 DN25 Male Thread Stop Valve
GB594 DN25 Male Thread Stop Valve

GB594 DN25 Male Thread Stop Valve

Quantity: 0 Pieces
Size: DN25
Pressure: 4.0 MPa
Body Material: Stainless Steel
Type: A
  1. Aplicable Medium: Frash water, Lubricanting oil, Fuel oil,t≤400℃ steam.

  2. Materials of Main Parts:

(1). Body: Stainless Steel, Carbon Steel;

(2). Cover: Carbon Steel;

(3). Disc: Stainless Steel;

(4). Stem: Stainless Steel

   3. Dimensions

PN

(MPa)

DN

(mm)

L

H

H1

D

D1

D2

I

I1

S2

D

S1

m

kg

4.0

25

130

167

38

M48×2

45

32

26

6

46

120

11

14

2.88

GB594 DN25 Male Thread Stop Valve.jpg

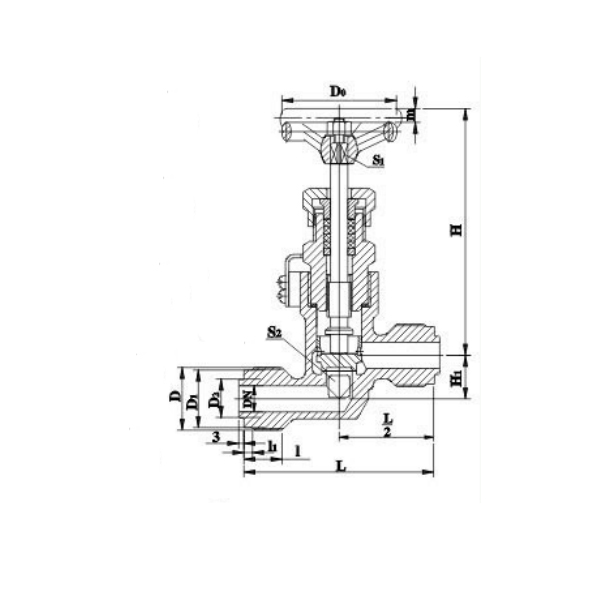

    4. Drawing

GB594 DN25 Male Thread Stop Valve.jpg
