CBT601 DN40 Self Closing Valve
  • CBT601 DN40 Self Closing Valve
CBT601 DN40 Self Closing Valve

CBT601 DN40 Self Closing Valve

Quantity: 0 Pieces
Size: DN40
Pressure: 0.25MPa
Body Material: Cast Steel
Type: AS
  1. Available medium: Sea water, fresh water, Lubricant, Fuel oil.

  2. Materials of main Parts

(1). Body: Cast tin bronze;

(2). Seat: Cast aluminum bronze;

(3). Cover: Cast aluminum bronze;

(4). Disc: Aluminum bronze;

(5). Stem: Aluminum bronze

   3. Dimensions

DN

(mm)

L

L1

H

L2

H1





D

D1

D2

b

f

n

d

m

kg

40

170

203

195

140

80

7

125

93

74

13

1

6

15

13

6.9

CBT601 DN40 Self Closing Valve.jpg

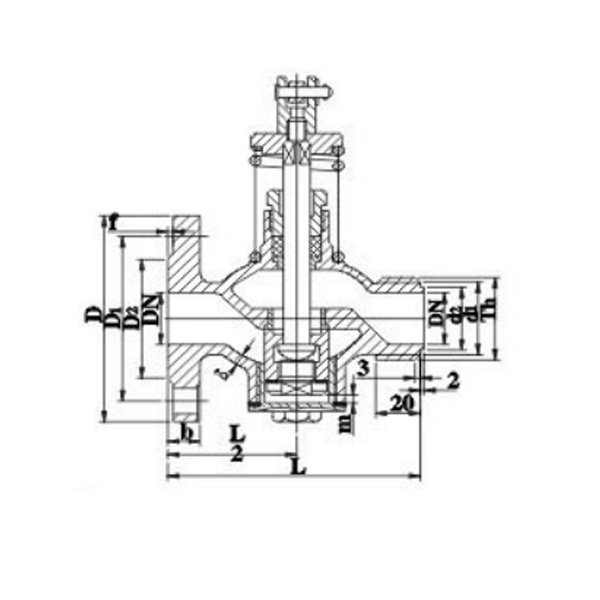

   4. Drawing

CBT601 DN40 Self Closing Valve.jpg
