GBT584 DN100 Stop Valve
  • GBT584 DN100 Stop Valve
GBT584 DN100 Stop Valve

GBT584 DN100 Stop Valve

Quantity: 1 Pieces
Size: DN100
Pressure: 1.6 MPa
Body Material: Cast Tin Bronze
Type: AS
  1.  Applicable Medium: Fresh Water, Lubricanting oil, Fuel oil,t≤300℃ Steam.

  2. DN: 100 ~ 300mm

  3. PN: 1.6MPa

  4. Materials of Main Parts

(1). Body:  Cast Tin Bronze;

(2). Disc: High-Quality Carbon Steel;

(3). Stem: Bronze;

(4). Disc Sesl Ring: Weld Stainless Steel;

(5). Body Seal Ring: Weld Stainless Steel

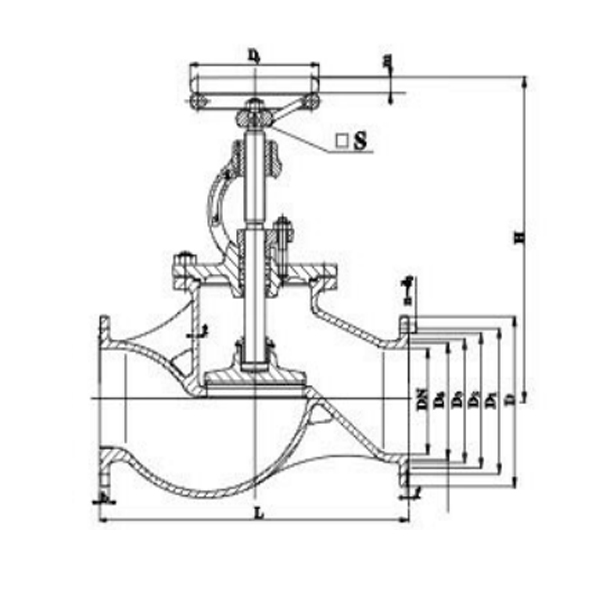

    3. Dimensions

PN

(MPa)

DN

(mm)

L

(AS)

H

(AS)

D

D1

D2

d

b

Th.

n

D

S

m

kg

1.6

100

350

417

220

180

158

18

22

M26

8

250

32

35

35.4

GBT584 DN100 Stop Valve .jpgGBT584 DN200 Stop Valve.jpg
