GBT592 Cast Iron Check Valve
  • GBT592 Cast Iron Check Valve
GBT592 Cast Iron Check Valve

GBT592 Cast Iron Check Valve

Quantity: 0 Pieces
Different Size
Different Pressure
Body Material: Cast Iron, Cast Steel and Bronze
Type: A and AS, B and BS
  1. Aplicable Medium: Frash water, Lubricanting oil, Fuel oil,t≤220℃ steam.

  2. DN: 65~150, 20~50 mm

  3. PN: 1.0, 1.6, 0.6 MPa

  4. Materials of Main Parts:

(1). Body: Cast Iron and Bronze;

(2). Cover:  Cast Iron and Bronze;

(3). Disc: Cast Tin Bronze;

(4). Seat: Cas Aluminum Bronze

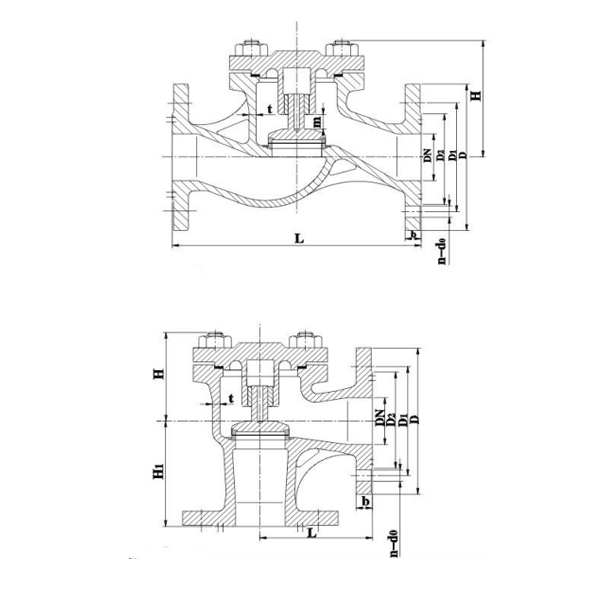

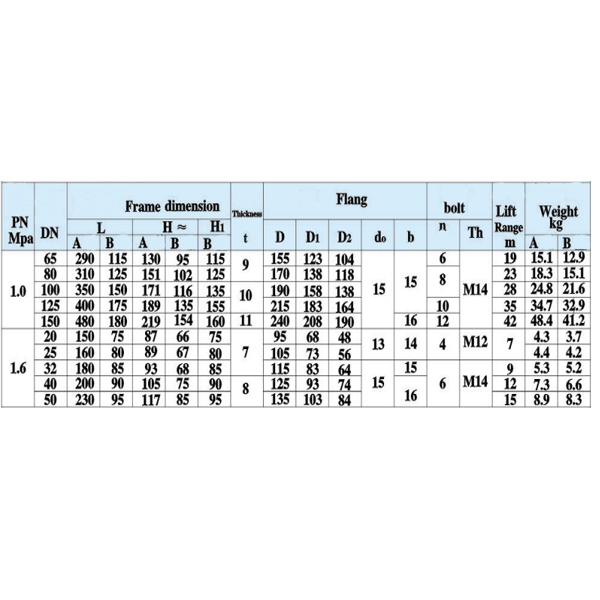

GBT592 DN125 Cast Iron Check Valve.jpgGBT592 DN125 Cast Iron Check Valve.jpgGBT592 DN125 Cast Iron Check Valve (2).jpg
