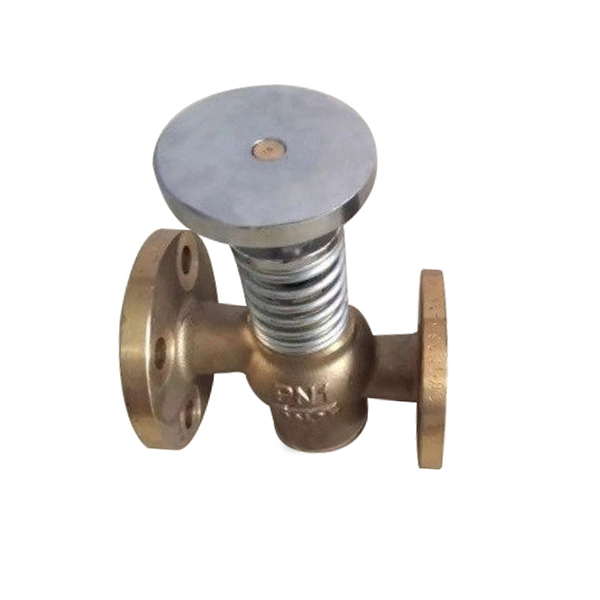

CBT601 DN25 Self Closing Valve
  • CBT601 DN25 Self Closing Valve
CBT601 DN25 Self Closing Valve

CBT601 DN25 Self Closing Valve

Quantity: 0 Pieces
Size: DN25
Pressure: 0.25MPa
Body Material: Cast Tin Bronze
Type: AS
  1. Available medium: Sea water, fresh water, Lubricant, Fuel oil.

  2. Materials of main Parts

(1). Body: Cast tin bronze;

(2). Seat: Cast aluminum bronze;

(3). Cover: Cast aluminum bronze;

(4). Disc: Aluminum bronze;

(5). Stem: Aluminum bronze

   3. Dimensions

DN

(mm)

L

L1

H

L2

H1





D

D1

D2

b

f

n

d

Th.

d1

d2

m

kg

25

136

183

168

130

62

6

105

73

56

12

1

4

13

M42×2

39

29

10

3.1

CBT601 DN25 Self Closing Valve.jpg

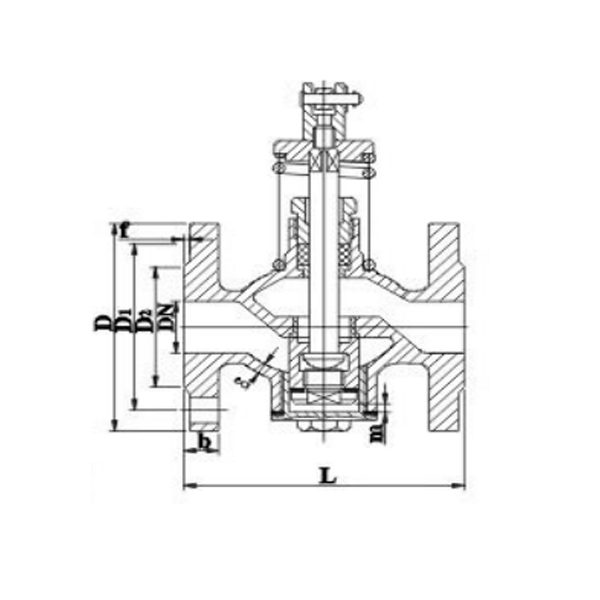

    4. Drawing

CBT601 DN25 Self Closing Valve.jpg
