GBT587 DN50 Bronze Flanged Stop Check Valve
  • GBT587 DN50 Bronze Flanged Stop Check Valve
GBT587 DN50 Bronze Flanged Stop Check Valve

GBT587 DN50 Bronze Flanged Stop Check Valve

Quantity: 0 Pieces
Size: DN50
Pressure: 2.5 MPa
Body Material: Cast Tin Bronze
Type: AS
  1. Applicable medium: Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam.

  2. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Stem: Aluminum Bronze

   3. Dimensions

PN

(Mpa)

DN

(mm)

L

H

thickness



D

D1

D2

d

b

n

Th.

D

S

m

kg

2.5

50

230

228

     6

165

125

102

18

17

4

M16

140

12

14

14.3

GBT587 DN50 Bronze Flanged Stop Check Valve.jpg

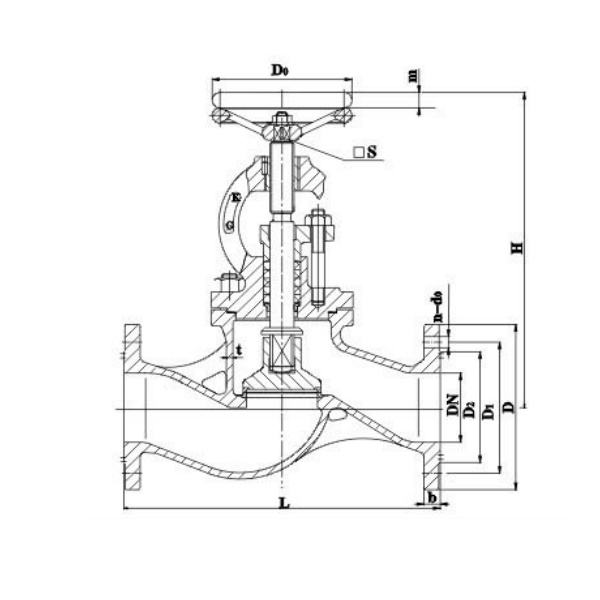

    4. Drawing

GBT587 DN50 Bronze Flanged Stop Check Valve1.jpg
