CBT11691 DN350 Cast Steel Suction Sea Valve
  • CBT11691 DN350 Cast Steel Suction Sea Valve
CBT11691 DN350 Cast Steel Suction Sea Valve

CBT11691 DN350 Cast Steel Suction Sea Valve

Quantity: 0 Pieces
Size: DN350
Pressure: 0.4 MPa
Body Material: Cast Steel
Type: Angle
  1. Available medium: Sea water, Fresh water.

  2. Materials of Main Part:

(1). Body: Cast Steel;

(2). Cover:Cast Steel;

(3). Disc: Cast Tin Bronze;

(4). Seat: Cast Tin Bronze;

(5). Stem: Aluminum Bronze

   3. Dimensions

DN



L

D

D1

D2

d

b

n

Th.

Handwheel

m

kg

350

425

490

445

415

22

26

12

M20

  450

100

272

CBT11691 DN350 Cast Steel Suction Sea Valve.jpg

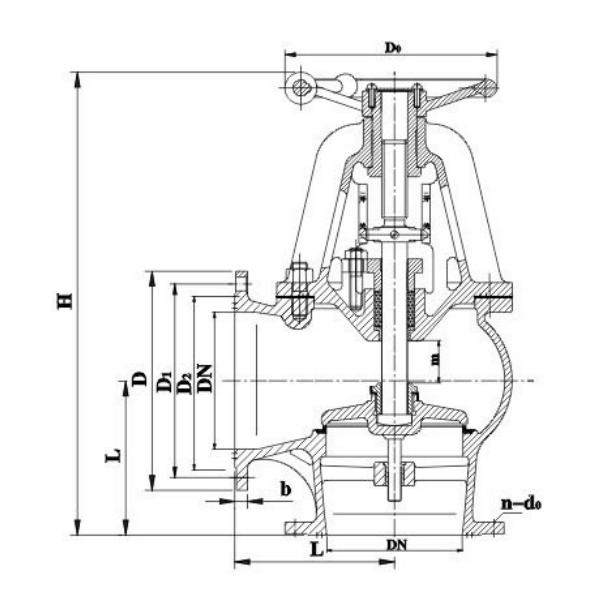

    4. Drawing

CBT11691 DN350 Cast Steel Suction Sea Valve1.jpg
