GBT585 BS Type Cast Steel Stop Check Valve
  • GBT585 BS Type Cast Steel Stop Check Valve
GBT585 BS Type Cast Steel Stop Check Valve

GBT585 BS Type Cast Steel Stop Check Valve

Quantity: 0 Pieces
Size: DN 80
Pressure: 6.4 MPa
Body Material: Cast Steel
Type: BS
  1.   Applicable Medium: Fresh water, Lubricanting oil, Fuel oil, t≤400℃

  2. Materials of Main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: High-quality Carbon Steel;

(4). Stem: Stainless Steel;

(5). Disc seal ring: Weld Stainless Steel;

(6). Body seal ring:  Weld Stainless Steel;

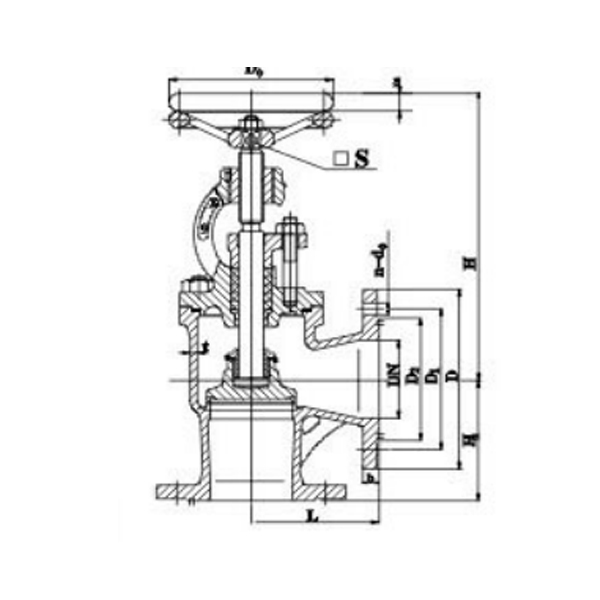

   3. Dimensions

PN

(MPa)

DN

(mm)

L

H

H1

D

D1

D2

t

d

b

n

Th.

D

m

kg

1.6

80

155

325

155

200

160

133

8.0

18

20

8

M16

200

24

24.5

GBT585 BS Type Cast Steel Stop Check Valve.jpgGBT585 BS Type Cast Steel Stop Check Valve.jpg
