GB594 DN32 Male Thread Stop Valve
  • GB594 DN32 Male Thread Stop Valve
GB594 DN32 Male Thread Stop Valve

GB594 DN32 Male Thread Stop Valve

Quantity: 0 Pieces
Size: DN32
Pressure: 10.0 MPa
Body Material:Stainless Steel
Type: A
  1. Aplicable Medium: Frash water, Lubricanting oil, Fuel oil,t≤400℃ steam.

  2. Materials of Main Parts:

(1). Body: Stainless Steel, Carbon Steel;

(2). Cover: Carbon Steel;

(3). Disc: Stainless Steel;

(4). Stem: Stainless Steel

   3. Dimensions

PN

(MPa)

DN

(mm)

L

H

H1

D

D1

D2

I

I1

S2

D

S1

m

kg

10.0

32

146

220

46

M56×2

53

38

28

6

55

160

14

16

5.12

GB594 DN32 Male Thread Stop Valve.jpg

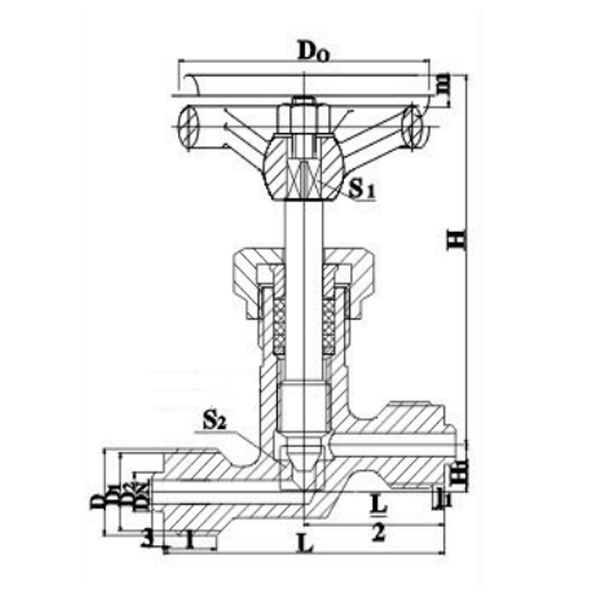

     4. Drawing

GB594 DN32 Male Thread Stop Valve1.jpg
