| Quantity: 0 Pieces |
| Size: DN80 |
| Pressure: 0.3 MPa |
| Body Material: Cast Iron |
Available medium: Sea water, Fresh water, steam of 220℃ and under.
Materials of Main Parts:
(1). Bronze: Cast Iron;
(2). Cover: Cast Iron;
(3). Stem: Aluminum Bronze;
(4). Disc: Cast Tin Bronze
3. Dimensions
DN | L | H | D1 | D2 | D3 | b | dₒ | n | Th. | thickness | kg |
80 | 155 | 295 | 190 | 150 | 128 | 18 | 18 | 4 | M16 | 9 | 36 |

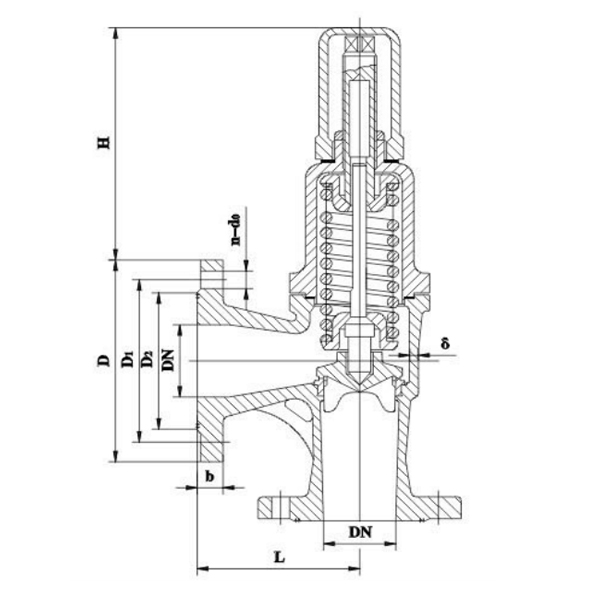

4. Drawing
