| Quantity: 0 Pieces |
| Size: DN10 |
| Pressure: 4.0 MPa |
| Body Material: Cast Aluminum Bronze |
| Type: A |
Applicable Medium: Frash water, Lubricanting oil, Fuel oil,t≤400℃ steam.
Materials of Main Parts:
(1). Body: Cast Aluminum Bronze;
(2). Cover: Aluminum Bronze;
(3). Disc: Aluminum Bronze;
(4). Stem: Aluminum Bronze
3. Dimensions
PN (MPa) | DN (mm) | L | H | H1 | D | D1 | D2 | I | I1 | S2 | Dₒ | S1 | m | kg |
4.0 | 10 | 94 | 128 | 20 | M27×1.5 | 24.8 | 14 | 16 | 3 | 27 | 80 | 8 | 7 | 0.98 |

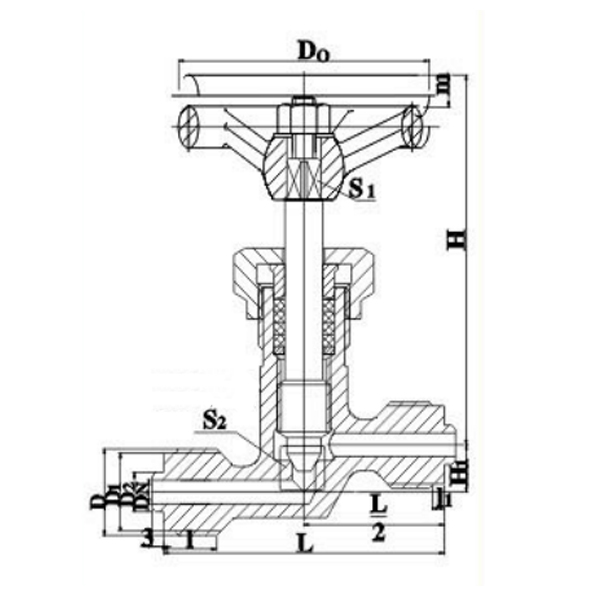

4. Drawing
