CBT692-1994 Point a Carbon Respiration Valve (B Type)
  • CBT692-1994 Point a Carbon Respiration Valve (B Type)
CBT692-1994 Point a Carbon Respiration Valve (B Type)

CBT692-1994 Point a Carbon Respiration Valve (B Type)

Quantity: 0 Pieces
Size: DN80
Pressure: u22640.021Mpa
Body Material: Cast Iron
Type: B and BS
  1. Apply to Lieu: Pressure vacuum tuby road breathing freely.

  2. DN: 80/100;

  3. Materials of main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Guide rod: Stainless Steel;

(4). Steam: Aluminum Bronze

    4. Dimensions

DN

DN1

D

D1

D2

b

d

n

Th

kg

80

100

170

138

118

14

15

8

M14

25.70

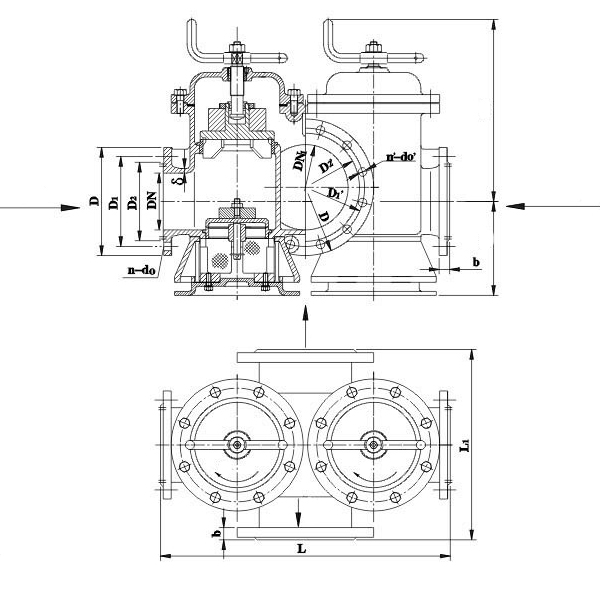

CBT692-1994 Point a Carbin Respiration Valve (B Type).jpgCBT692-1994 Point a Carbin Respiration Valve (B Type)1.jpg
