GBT584-2008 Marine Cast Steel Flange Stop Check Valve

GBT584-2008 Marine Cast Steel Flange Stop Check Valve

Quantity: 0 Pieces
Size: DN50
Pressure: 2.5 MPa
Body Material: Cast Steel
Type: A and AS
  1. Applicable Medium: Fresh Water, Lubricanting Oil, Fuel Oil, t≤300 Degree Steam.

  2. Materials of Main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: High-quality Carbon Steel;

(4). Steam: Stainless Steel;

(5). Disc Seal Ring: Weld Stainless Steel;

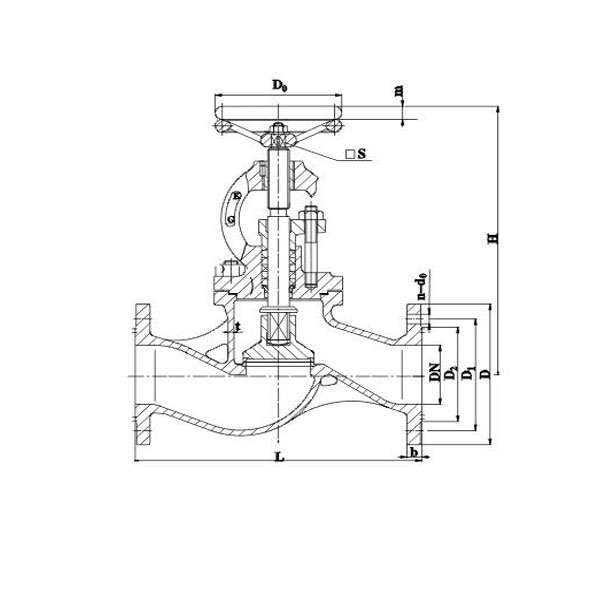

    3. Dimensions

Mpa

DN

L

H ≈

t

D

D1

D2

d

b

n

Th

D

S

m

kg

2.5

50

230

288

7.0

135

103

84

15

13

8

M14

140

12

14

12.9

GBT584-2008 Marine Cast Steel Flange Stop Check Valve (2).jpgGBT584-2008 Marine Cast Steel Flange Stop Check Valve (2).jpg
