| Quantity: 0 Pieces |
| Size: DN10 |
| Pressure: 0.1 MPa |
| Body Material: Cast Aluminum Bronze |
| Type: Angle |
Available Medium: Fresh Water, Sea Water, Lubricant Oil, Fuel Oil.
DN: 10 to 25;
Materials of main Parts
(1). Body: Cast Aluminum Bronze;
(2). Cover: Aluminum Bronze;
(3). Stem: Aluminum Bronze

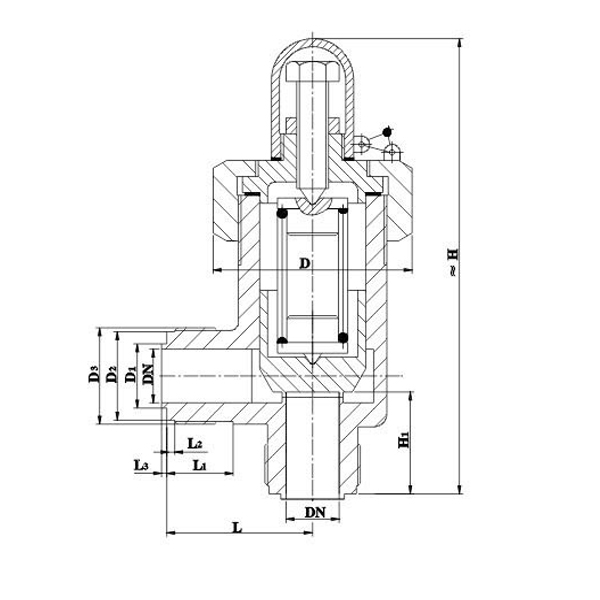

4. Dimensions
Mpa | DN | L | D | H1 | H | D1 | D2 | D3 | L1 | L2 | L3 | kg |
0.1 | 10 | 40 | 55 | 30 | 138 | 13 | 19.8 | M22×1.5 | 17 | 2 | 2 | 1.3 |
