| Quantity: 0 Pieces |
| Size: DN65 |
| Pressure: 1.0 MPa |
| Body Material: Cast Iron |
| Type: A and AS |
The temperature is not lower than -165 degree liquefied gas, Corrosive medium.
DN: 65 ~ 150
Materials of main parts:
(1). Body: Cast Iron;
(2). Cover: Cast Iron;
(3). Disc: Cast Iron;
(4). Stem: Stainless Steel

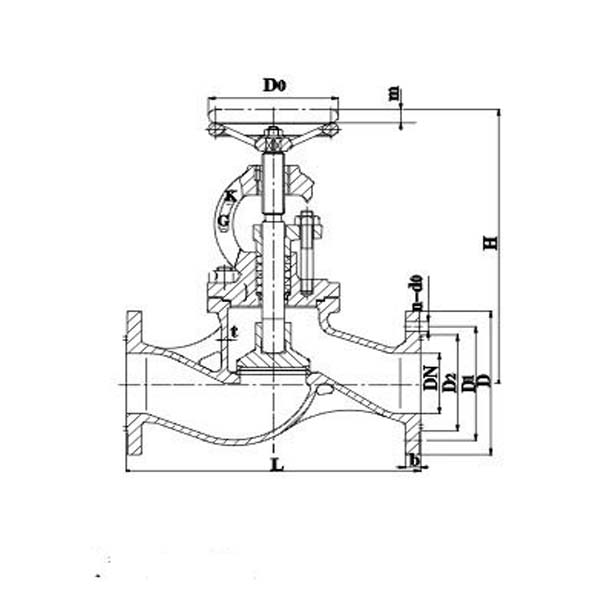

4. Dimensions
DN | L | H | t | D | D1 | D2 | dₒ | b | n | Th | Dₒ | S | m | kg |
65 | 290 | 310 | 6 | 155 | 123 | 104 | 15 | 14 | 6 | M14 | 140 | 12 | 18 | 12.5 |
