CBM1050 DN 80 Cast Steel Flanged Check Valve
  • CBM1050 DN 80 Cast Steel Flanged Check Valve
CBM1050 DN 80 Cast Steel Flanged Check Valve

CBM1050 DN 80 Cast Steel Flanged Check Valve

Quantity: 0 Pieces
Size: DN80
Pressure: 2.0 MPa
Body Material: Cast Steel
Type: A
  1. Aplicable medium: Fresh water, Lubricanting oil, Fuel oil, t≤300℃ steam.

  2. Parts name:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: High quality Carbon steel

   3. Dimensions

DN

L

H

D

C

g

h

t

n

Th.

m

kg

80

300

156

200

160

135

12

22

8

M20

23

16.0

CBM1050 DN 80 Cast Steel Flanged Check Valve.jpg

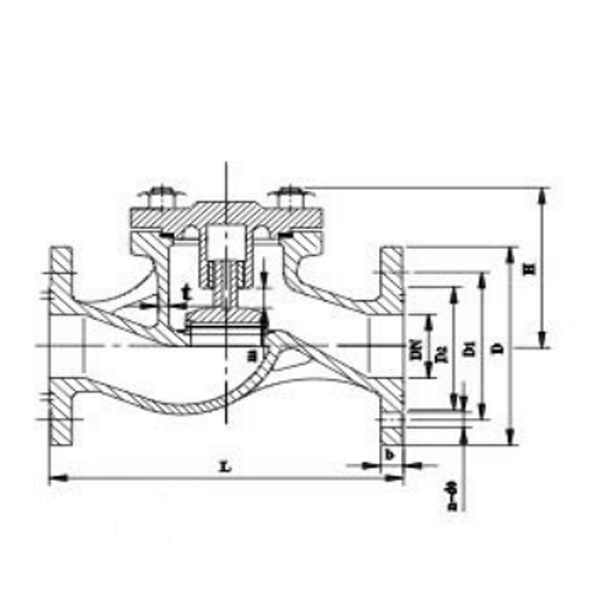

    4. Drawing

CBM1050 DN 80 Cast Steel Flanged Check Valve.jpg
