GBT3036-94 Marine center line-type butterfly valve

GBT3036-94 Marine center line-type butterfly valve

Quantity: 0 Pieces
Size: DN80
Pressure: 1.0 MPa
Body Material: Cast Iron
Type: A and AS
  1. Available medium: Sea water, Fresh water, Air, Crude oil and fnished oil that temperature is 70 degree and under.

  2. DN: 80 ~ 200mm

  3. PN: 1.0 MPa

  4. Materials of main Parts:

(1). Body: Cast Iron;

(2). Disc: Aluminum;

(3). Stem: Stainless Steel

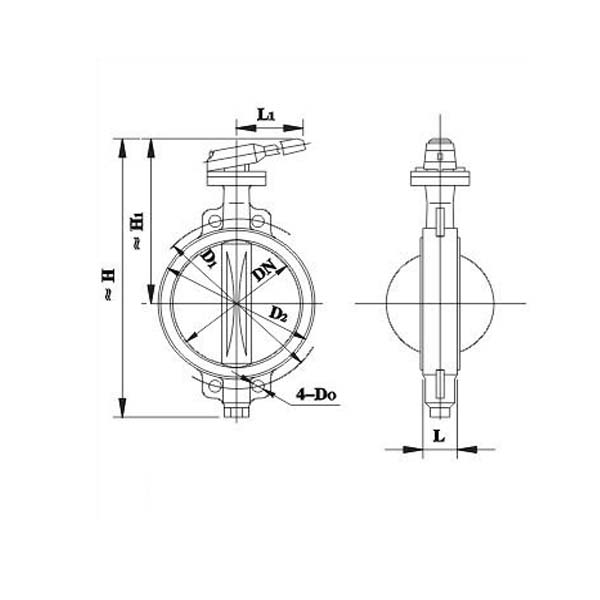

    5. Dimensions

DN

L

L1

H

H1

D1

D2

d

kg

80

46

254

298

190

138

118

15

4.80
