CBT4015-2005 J Type Flange Aluminum Bronze Stop Check Valve
  • CBT4015-2005 J Type Flange Aluminum Bronze Stop Check Valve
CBT4015-2005 J Type Flange Aluminum Bronze Stop Check Valve

CBT4015-2005 J Type Flange Aluminum Bronze Stop Check Valve

Quantity: 0 Pieces
Size: DN15
Pressure: 2.2 MPa
Body Material: Aluminum Bronze
Type: BJ
  1. Applicable Medium: Steam of 205 Degree or less, Air, Gas, Oil and Pulastion Water/ Non-shock Water of 120Degree or less.

  2. Nominal Diameter: 15 to 40;

  3. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover:  Cast Tin Bronze;

(3). Disc:  Cast Tin Bronze;

(4). Steam: Brass;

(5). Hand Wheel: Cast Iron

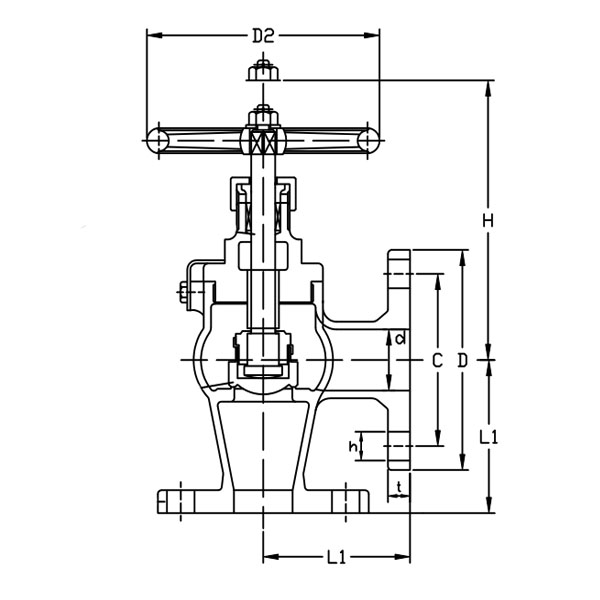

   4. Dimensions

DN

L

D

C

No.

h

t

H

D2

kg

15

55

80

60

4

12

9

120

80

2.73

CBT4015-2005 J Type Flange Aluminum Bronze Stop Check Valve.jpgCBT4015-2005 J Type Flange Aluminum Bronze Stop Check Valve.jpg
