| Quantity: 0 Pieces |
| Size: DN80 DN100 |
| Pressure: 0.021 |
| Body Material: Cast Iron |
| Type: A and AS |
Apply to Lieu: Pressure vacuum tuby road breathing freely.
DN: 80/100;
Materials of main Parts:
(1). Body: Cast Steel;
(2). Cover: Cast Steel;
(3). Guide rod: Stainless Steel;
(4). Steam: Aluminum Bronze
4. Dimensions
DN | DN1 | D | D1 | D2 | b | dₒ | n | Th | kg |
80 | 100 | 170 | 138 | 118 | 14 | 15 | 8 | M14 | 25.70 |
958862.jpg "CBT692-1994 Point a Carbin Respiration Valve (A Type)958862.jpg")

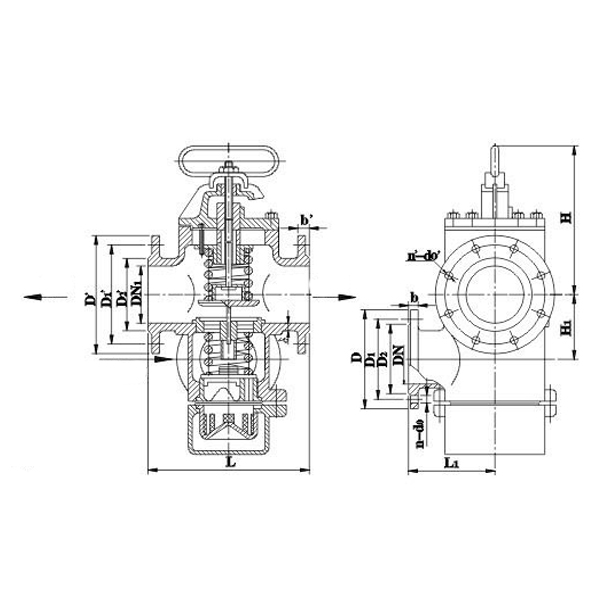

1722961.jpg "CBT692-1994 Point a Carbin Respiration Valve (B Type)1722961.jpg")
