CBT 3841 Side boiler draw-off valve
  • CBT 3841 Side boiler draw-off valve
CBT 3841 Side boiler draw-off valve

CBT 3841 Side boiler draw-off valve

Quantity: 0 Pieces
Size: DN40
Pressure: 2.5 MPa
Body Material: Cast Steel
Type: A and AS
  1. Available medium: Water, Steam of 250 degree and under

  2. DN(mm): 25, 32, 40

  3. Material of main parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc:Aluminum Bronze;

(4). Stem: Stainless Steel

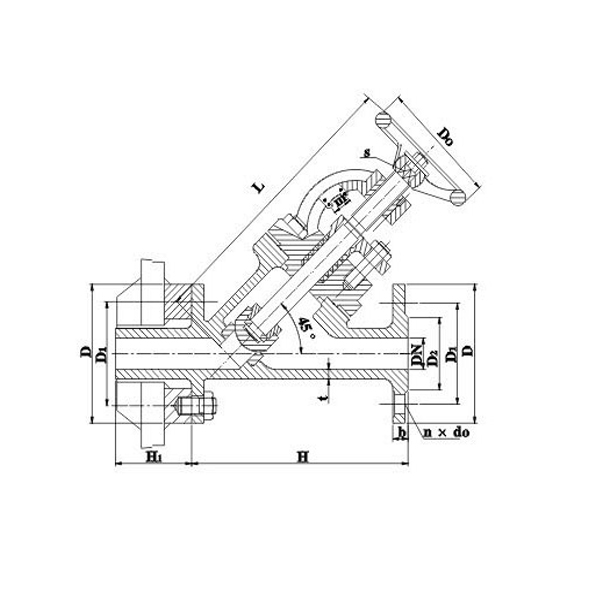

   4. Dimensions


DN

L

H

H1

t

D

D1

D2

b

d

Th

n

D

S

m

kg

40

302

220

60

8.0

125

93

74

13

15

M14

6

120

10

20

10.9

CBT 3841 Side boiler draw-off valve.jpgCBT 3841 Side boiler draw-off valve1.jpg
