Marine Center Worm Manual Butterfly Valve DN125
  • Marine Center Worm Manual Butterfly Valve DN125
Marine Center Worm Manual Butterfly Valve DN125

Marine Center Worm Manual Butterfly Valve DN125

Quantity: 0 Pieces
Size: DN125
Pressure: 1.0 MPa
Body Material: Cast Iron
Type: A and AS, B and BS
  1. Available Medium: Sea Water, Fresh Water, Air, Crude Oil and fnished Oil that temperature is 70 and under.

  2. Bady Materials: Iron, Bronze, Stainless Steel, Aluminum, Steel, Plastic, Cast Iron.

  3. Materials of main Parts:

(1). Body: Cast Iron;

(2). Disc: Aluminum;

(3). Stem Stainless Steel

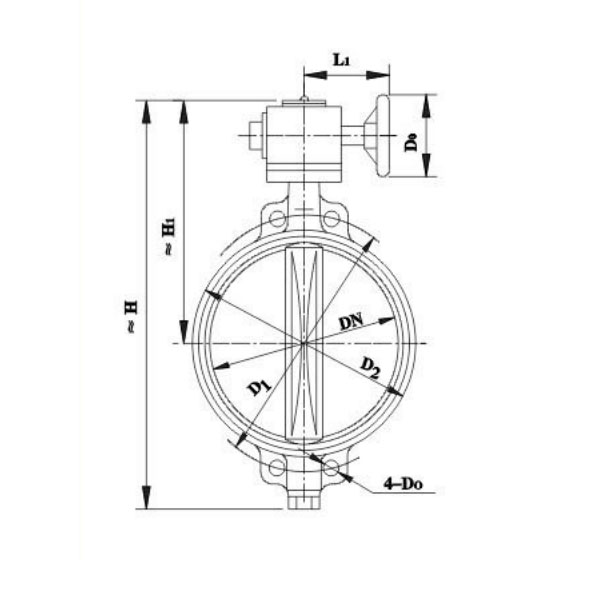

    3. Dimensions

DN

H

H1

L

L1

D1

D2

d

kg

125

378

235

56

254

183

164

15

7.95

Marine Center Worm Manual Butterfly Valve 125.jpgMarine Center Worm Manual Butterfly Valve 100A.jpg
