CB304-92 Cast Iron Flange Angle Safety Valve
  • CB304-92 Cast Iron Flange Angle Safety Valve
CB304-92 Cast Iron Flange Angle Safety Valve

CB304-92 Cast Iron Flange Angle Safety Valve

Quantity: 0 Pieces
Size: DN40
Pressure: 0.5 MPa
Body Material: Cast Iron
Type: B, BS
  1. Available Medium: Fresh Water, Sea Water and Fuel Oil.

  2. Materials of main Parts:

(1). Body: Cast Iron:

(2). Cover: Cast Iron;

(3). Disc: Cast Tin Broze

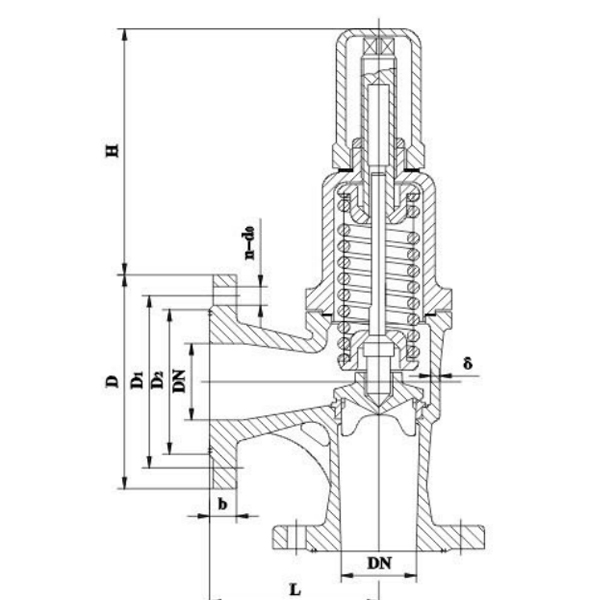

    3. Dimensions

DN

L

H

D

D1

D2

b

d

n

Th

Thickness

kg

40

115

210

130

100

80

16

14

4

M12

   8

12.3

CB304-92 Cast Iron Flange Angle Safety Valve (2).jpgCB304 Cast Iron Safety Valve.jpg
