CBT 4026-2005 J is similar to the flange Cast Steel valve
  • CBT 4026-2005 J is similar to the flange Cast Steel valve
CBT 4026-2005 J is similar to the flange Cast Steel valve

CBT 4026-2005 J is similar to the flange Cast Steel valve

Quantity: 0 Pieces
Size: DN50
Pressure: 0.5 MPa
Body Material: Cast Steel
Type: A and AS
  1. Applicable medium: Steam no higher than 220 degree

  2. Materials of main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Core: Cast Steel;

(4). Hand wheel: Cast Steel;

(5). Stem: Stainless Steel;

(6). Body seal ring: Stainless Steel

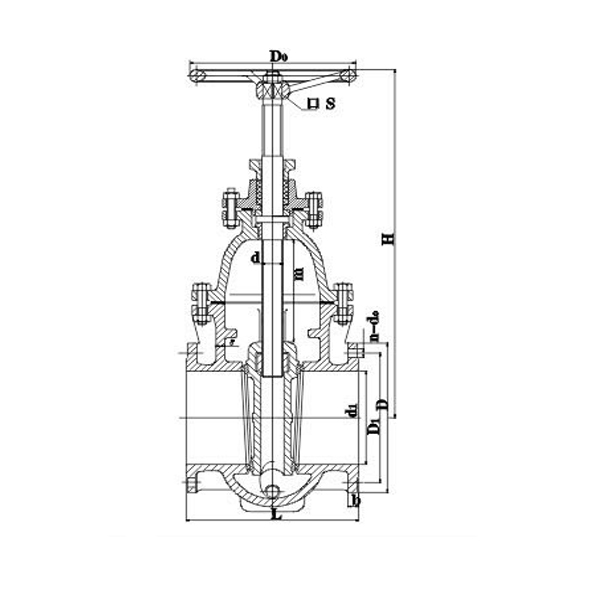

   3. Dimensions


DN

d1

L

H

t

D

D1

b

n

d

Th

d

s

D

m

kg

50

50

180

285

8

130

105

16

4

15

M12

Tr16×8

10

125

58

13.5

CBT 4026-2005 J is similar to the flange Cast Steel valve.jpgCBT 4026-2005 J is similar to the flange Cast Steel valve1.jpg
