Quantity: 0 pieces |
Nominal weight: 1440kgs |
Material: ZG230-450H |
Holding power: High holding power |
Surface treatment: Bituminous paint |

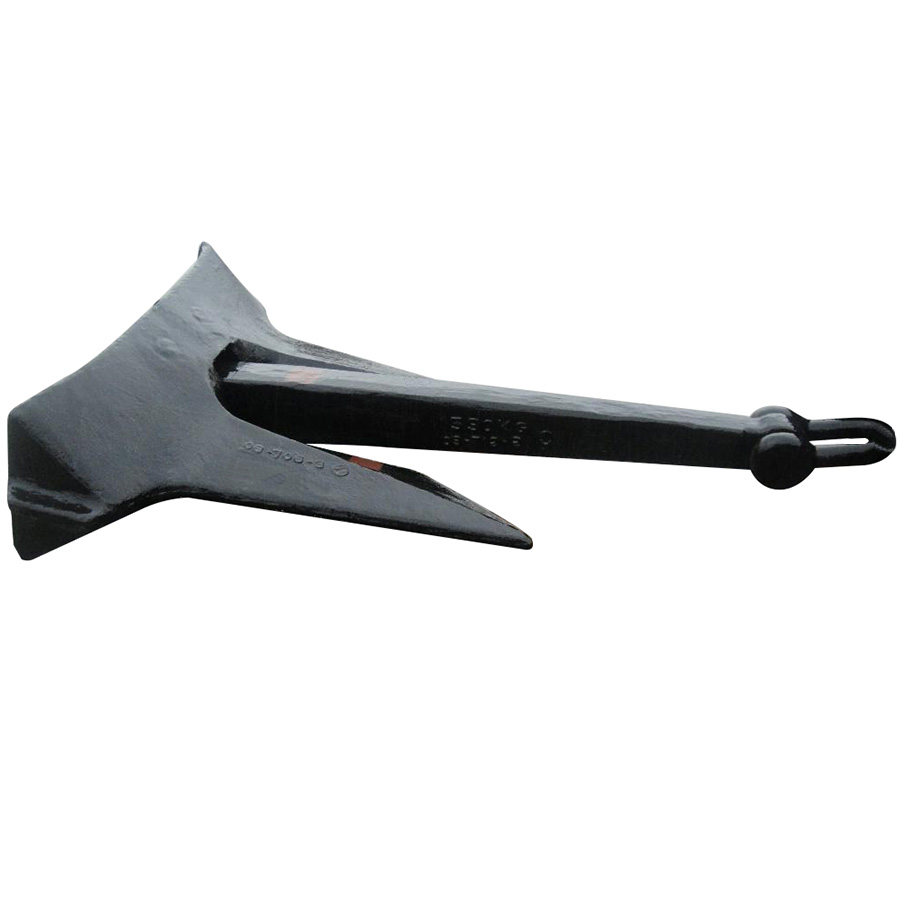

AC-14 HHP Anchor 1440kgs

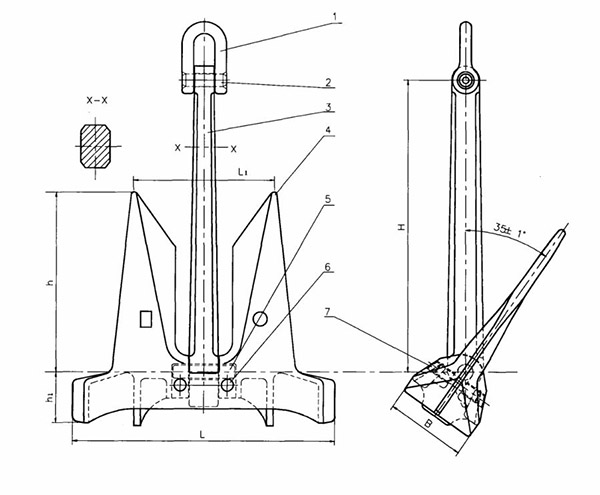

Drawings and Parameters of AC-14 HHP Anchor 1440kgs:
Nominal Weight (kg) | H (mm) | L1 (mm) | H (mm) | L (mm) | h1 (mm) | B (mm) |
1440 | 1818 | 885 | 1118 | 1645 | 324 | 505 |
