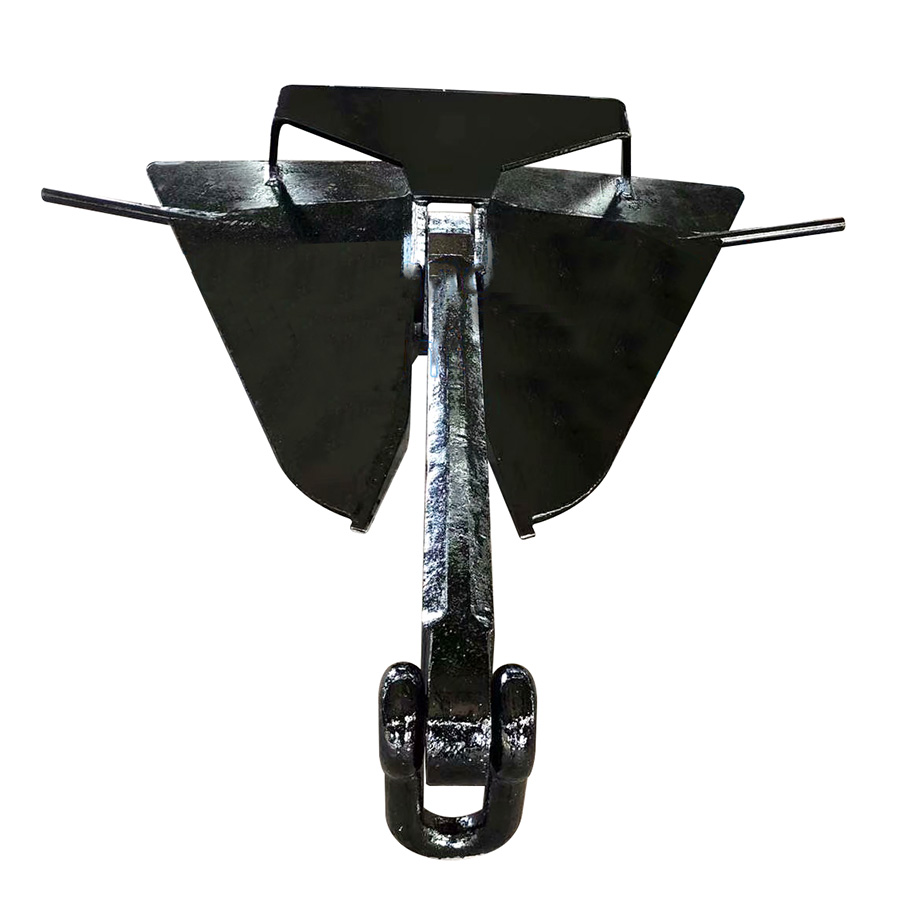

Offshore Stevin MK3 Anchor
Offshore Stevin MK3 Anchor

Offshore Stevin MK3 Anchor

Quantity: 0 pieces
Nominal weight: 1000kgs~30000kgs
Material: Q345C
Holding power: High holding power
Surface treatment: Bituminous paint

Offshore Stevin MK3 Anchor

Offshore Stevin MK3 Anchor 1.jpg


Drawings and Parameters of Offshore Stevin MK3 Anchor:

Offshore Stevin MK3 Anchor 4.jpg

Nominal Weight

(kg)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

K

(mm)

S

(mm)

1000

2429

2654

1559

2023

737

1010

60

1500

2774

3038

1785

2316

843

1156

65

3000

3493

3828

2249

2918

1063

1456

80

5000

4120

4538

2667

3460

1260

1727

80

7000

4602

5077

2983

3871

1409

1932

90

9000

5012

5521

3244

4209

1533

2100

100

12000

5516

6076

3570

4632

1687

2312

110

15000

5942

6545

3846

4990

1817

2490

120

20000

6372

6986

4100

5324

2048

2674

160

30000

7289

7997

4694

6094

2345

3061

180
