| Quantity: 0 pieces |
| Nominal weight: 1000kgs~30000kgs |
| Material: Q345C |
| Holding power: High holding power |
| Surface treatment: Bituminous paint |
Offshore Stevin MK5 Anchor
Drawings and Parameters of Offshore Stevin MK5 Anchor:
Nominal Weight (KG) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | T (mm) | S (mm) |
1000 | 2580 | 2780 | 1582 | 1314 | 236 | 1074 | 430 | 62 |
1500 | 2954 | 3187 | 1812 | 1505 | 271 | 1230 | 493 | 80 |
3000 | 3721 | 4011 | 2283 | 1896 | 342 | 1550 | 622 | 90 |
5000 | 4412 | 4756 | 2707 | 2248 | 406 | 1837 | 738 | 110 |
7000 | 4910 | 5290 | 3011 | 2500 | 453 | 2045 | 825 | 117 |
8000 | 5161 | 5563 | 3166 | 2629 | 474 | 2149 | 862 | 130 |
10000 | 5559 | 5992 | 3410 | 2832 | 511 | 2315 | 929 | 140 |
12000 | 5908 | 6368 | 3624 | 3010 | 543 | 2460 | 988 | 150 |
14000 | 6219 | 6704 | 3815 | 3169 | 572 | 2590 | 1040 | 160 |
15000 | 6364 | 6860 | 3904 | 3242 | 585 | 2650 | 1064 | 170 |
18000 | 6763 | 7290 | 4149 | 3446 | 622 | 2816 | 1131 | 180 |
20000 | 7004 | 7550 | 4297 | 3569 | 644 | 2917 | 1171 | 190 |
22000 | 7230 | 7794 | 4436 | 3684 | 665 | 3011 | 1209 | 200 |
25000 | 7545 | 8133 | 4629 | 3844 | 694 | 3142 | 1262 | 200 |
30000 | 8018 | 8645 | 4919 | 4085 | 737 | 3339 | 1341 | 220 |

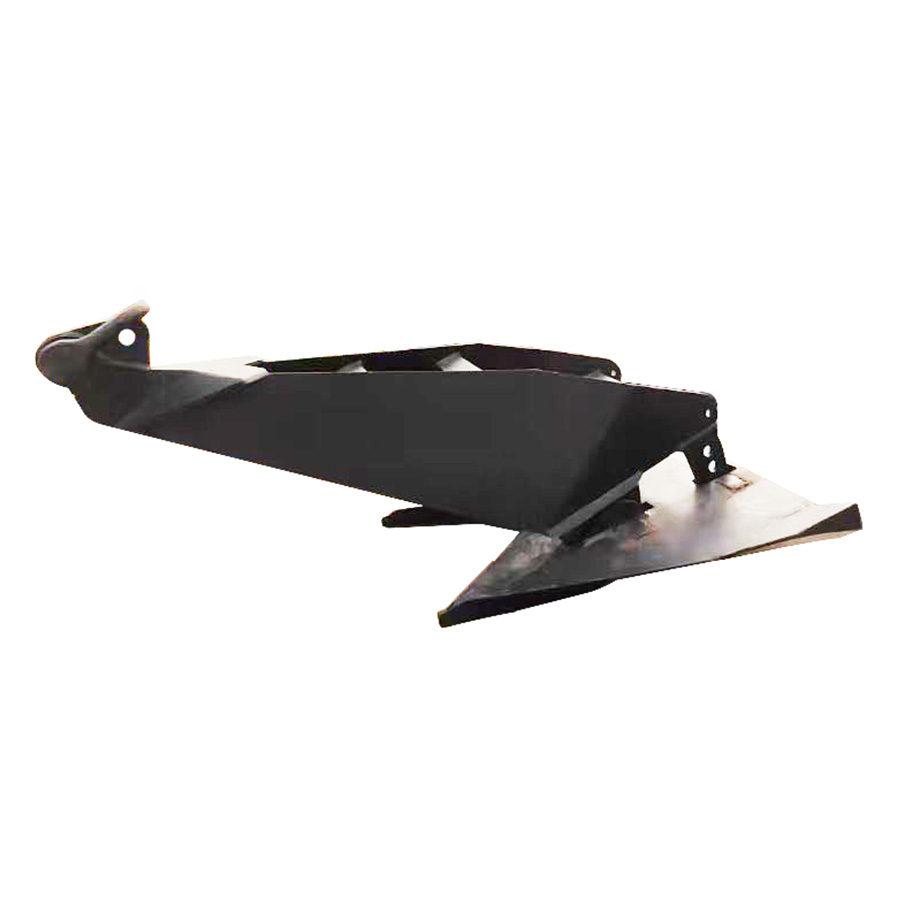

Pictures of Offshore Stevin MK5 Anchor：
