Quantity: 0 Pieces |
Size: 25A |
Pressure: 10K |
Body Material: Bronze |
Type: U |
The flanges shall nominal diametro 15 to 50 shall conform to JIS B 2240
Materials:
(1). Bady(15A-40A): Bronze;
(2). Body(50A): Bronze/Cast Steel;
(3). Disc: Broze;
(4). Seat Ring: Itegral/Bronze;
(5). Bonnet(50A): Bronze/Cast Steel;
(6). Stem: Brass;
(7). Packing Bush: Brass;
(8). Packing Gland: Brass;
(9). Spring Swp-A;
(10). Sring Support: Bronze/Steel;
(11). Handle: Steel;
(12). Nut: Brass;
(13). Nut: Brass;
(14). Seat Screw: Brass;
(15). Packing: Non Asbestos;
(16). Gasket: Non Asbestos;
(17). Gasket: Non Asbestos;
(18). Unick Nut: Steel;
(19). Nipple: Steel;
(20). Gasket: Non Asbestos
3. Dimensions
Type | Size | d | D | C | N-h | t | L | L1 | H | kg |
F7398 10K
| 25A | 25 | 125 | 90 | 4-19 | 14 | 130 | 65 | 130 | 4.7 |

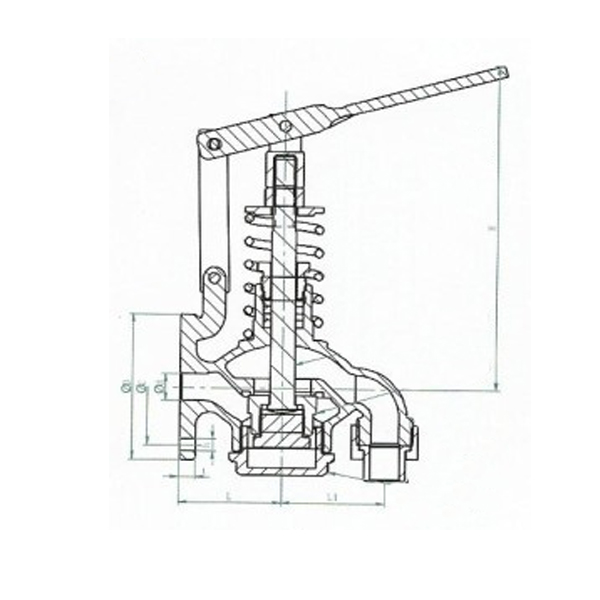

4. Drawing
