| Quantity: 0 Pieces |
| Size: DN50 |
| Pressure: 1.6 MPa |
| Body Material: Iron |
| Type: A and AS |
Available medium: Fresh water, Sea water, Lubricant oil, Fuel oil, steam of 220 degree and under.
DN: 65 ~ 150mm and 20 ~ 50mm
PN: 1.6 and 1.0MPa
Materials of main Parts:
(1). Body: Iron;
(2). Cover: Iron;
(3). Disc: Cast Tin Bronze;
(4). Seat: Cast Aluminum Bronze

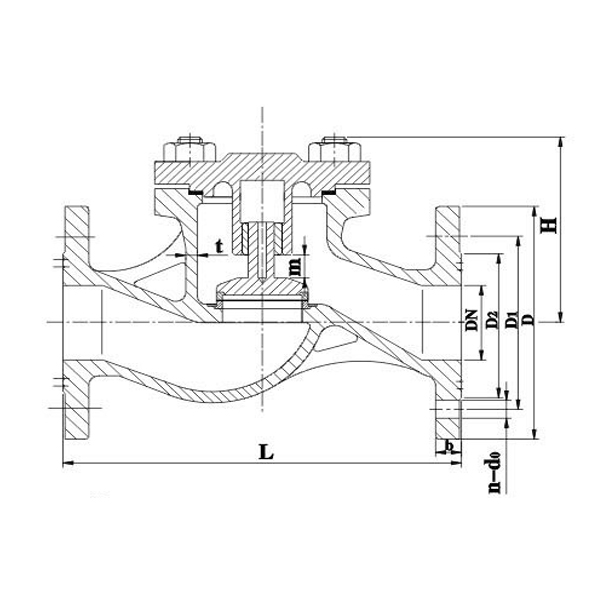

5. Dimensions
DN | L | H | t | D | D1 | D2 | dₒ | b | n | Th | m | kg |
50 | 230 | 117 | 8 | 165 | 125 | 102 | 18 | 20 | 4 | M16 | 15 | 11.4 |
