GBT587-2008 Marine Bronze Flange Stop Check Valve

GBT587-2008 Marine Bronze Flange Stop Check Valve

Quantity: 0 Pieces
Size: DN65
Pressure: 1.0 MPa
Body Material: Cast Tin Bronze
Type: A and AS
  1. Applicable Medium: Fresh Water, Lubricanting Oil, Fuel Oil, t≤250 Degree Steam.

  2. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Steam: Aluminum Bronze

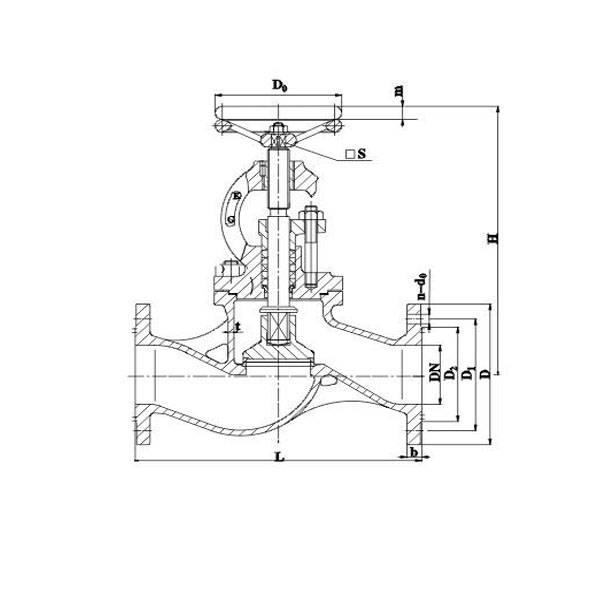

   3. Dimensions

Mpa

DN

L

H ≈

t

D

D1

D2

d

b

n

Th

D

S

m

kg

1.0

65

290

310

6

155

123

104

15

14

6

M14

140

12

18

14.8

GBT587-2008 Marine Bronze Flange Stop Check Valve1.jpgGBT584-2008 Marine Cast Steel Flange Stop Check Valve (2).jpg
