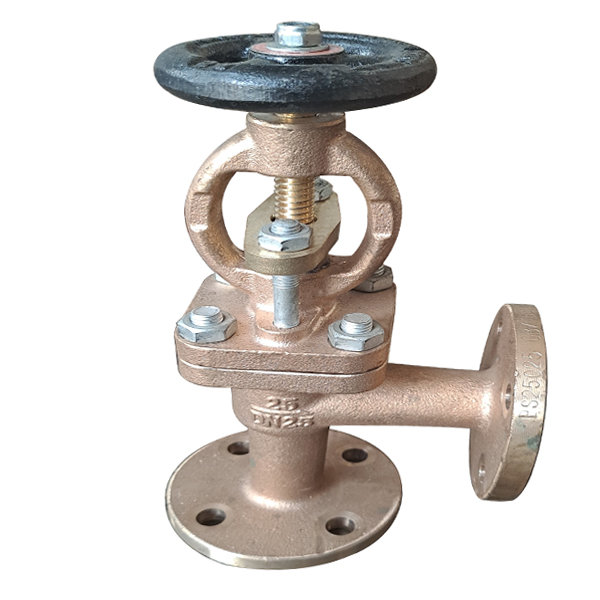

GBT587 DN25 Bronze Globe Valve
  • GBT587 DN25 Bronze Globe Valve
GBT587 DN25 Bronze Globe Valve

GBT587 DN25 Bronze Globe Valve

Quantity: 0 Pieces
Size: DN25
Pressure: 0.6MPa
Body Material: Cast Tin Bronze
Type: BS
  1.   Applicable Medium: Sea water, Fresh water, Lubricanting oil, Fuel oil t≤220℃ steam

  2. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Stem: Aluminum Bronze

   3. Dimensions

PN

(Mpa)

DN

(mm)

L

H1

H





D

D1

D2

d

b

n

Th.

D

S

m

kg

0.6

25

100

100

203

4

100

75

60

11

14

4

M10

80

8

7

5.1

GBT587 DN25 Bronze Globe Valve.jpg

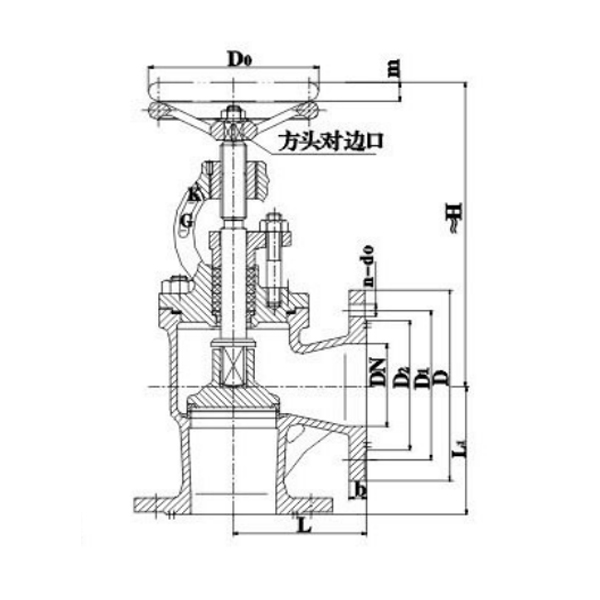

   4. Drawing

GBT587 DN25 Bronze Globe Valve.jpg
