| Quantity: 0 pieces |
| Nominal weight: 60kgs~25000kgs |
| Material: ZG230-450H |
| Holding power: High holding power |
| Surface treatment: Hot dip galvanized/Bituminous paint |
Danforth HHP Anchor

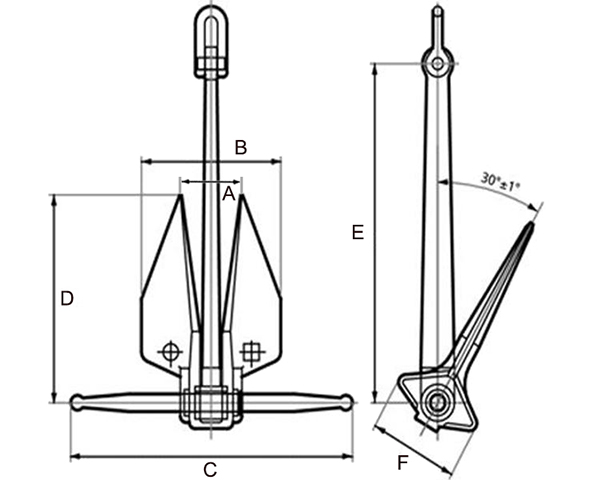

Drawings and Parameters of Danforth HHP Anchor:
Nominal Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
60 | 186 | 408 | 755 | 535 | 985 | 240 |
75 | 200 | 450 | 830 | 590 | 1080 | 260 |
100 | 216 | 490 | 930 | 640 | 1180 | 290 |
120 | 220 | 505 | 970 | 670 | 1230 | 300 |
125 | 234 | 520 | 1000 | 690 | 1270 | 310 |
150 | 242 | 550 | 1060 | 732 | 1348 | 330 |
200 | 266 | 600 | 1150 | 810 | 1490 | 360 |
250 | 294 | 650 | 1240 | 870 | 1600 | 390 |
276 | 296 | 660 | 1250 | 885 | 1620 | 400 |
300 | 312 | 690 | 1320 | 925 | 1700 | 420 |
400 | 342 | 750 | 1460 | 1010 | 1810 | 460 |
500 | 368 | 800 | 1570 | 1100 | 2020 | 490 |
750 | 414 | 910 | 1800 | 1260 | 2300 | 560 |
1000 | 450 | 980 | 1980 | 1380 | 2540 | 620 |
1250 | 484 | 1070 | 2100 | 1490 | 2740 | 670 |
1500 | 512 | 1120 | 2220 | 1580 | 2850 | 700 |
2000 | 560 | 1130 | 2440 | 1730 | 2910 | 770 |
2500 | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
3000 | 640 | 1290 | 2790 | 1980 | 3330 | 880 |
4000 | 700 | 1420 | 3070 | 2170 | 3590 | 970 |
5000 | 735 | 1482 | 3200 | 2270 | 3840 | 1020 |
6000 | 800 | 1620 | 3500 | 2480 | 4100 | 1100 |
7000 | 840 | 1696 | 3850 | 2590 | 4180 | 1150 |
8500 | 910 | 1936 | 3940 | 2600 | 4490 | 1240 |
10000 | 940 | 2000 | 4150 | 2900 | 4640 | 1280 |
13600 | 1046 | 2120 | 4590 | 3250 | 5378 | 1440 |
16000 | 1105 | 2240 | 4845 | 3435 | 5680 | 1520 |
18000 | 1150 | 2270 | 5000 | 3570 | 5680 | 1580 |
20000 | 1190 | 2350 | 5175 | 3695 | 5880 | 1635 |
25000 | 1280 | 2530 | 5570 | 3982 | 6330 | 1760 |
Photo of Danforth Anchor:
