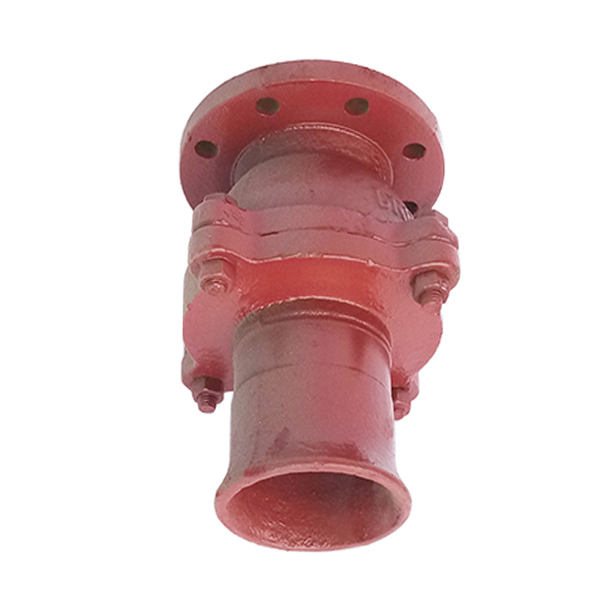

CBT3478 Cast Iron Suction Check Valve
  • CBT3478 Cast Iron Suction Check Valve
CBT3478 Cast Iron Suction Check Valve

CBT3478 Cast Iron Suction Check Valve

Quantity: 0 Pieces
Size: DN40
Pressure: 1.0MPa
Body Material: Gray Cast Iron
Type: RS
  1.  Applicable Medium:  Oil, Sea Water, Fresh Water

  2. Materials of Main Parts:

(1). Body: Gray cast iron、Cast silicon brass;

(2). Cover: Gray cast iron、Cast silicon brass;

(3). Disc: Gray cast iron、Cast silicon brass;

(4). Stem: Silicon brass

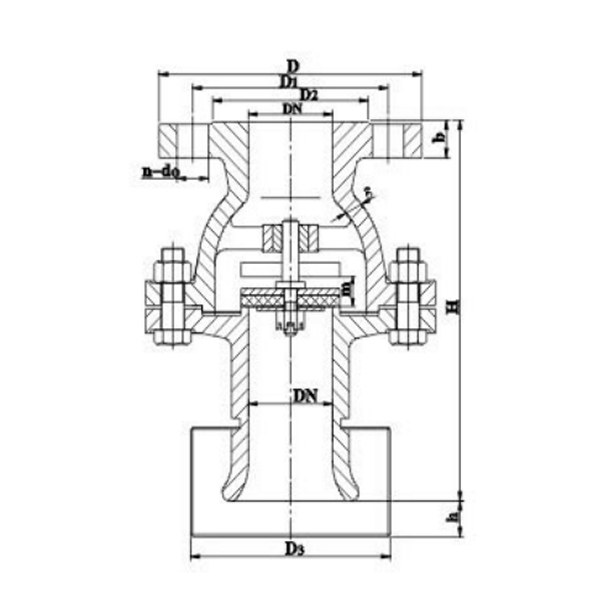

   3. Dimensions

DN

H

h

thickness

D

D3

D1

D2

d

b

Th.

n

m

kg

40

170

17

8

130

95

100

80

14

16

M12

4

12

3.15

CBT3478 Cast Iron Suction Check Valve.jpgCBT3478 Cast Iron Suction Check Valve.jpg
