CBT3656-1994 Marine Air pressure reducing valve
  • CBT3656-1994 Marine Air pressure reducing valve
CBT3656-1994 Marine Air pressure reducing valve

CBT3656-1994 Marine Air pressure reducing valve

Quantity: 0 Pieces
Size: DN import 15 DN exportation 20
Pressure: 1.0 MPa
Body Material: Cast Silscon Brass
Type: Air pressure reducing valve
  1. Materials of main Parts

(1). Body: Cast Silicon Brass;

(2). Cover: Cast Steel

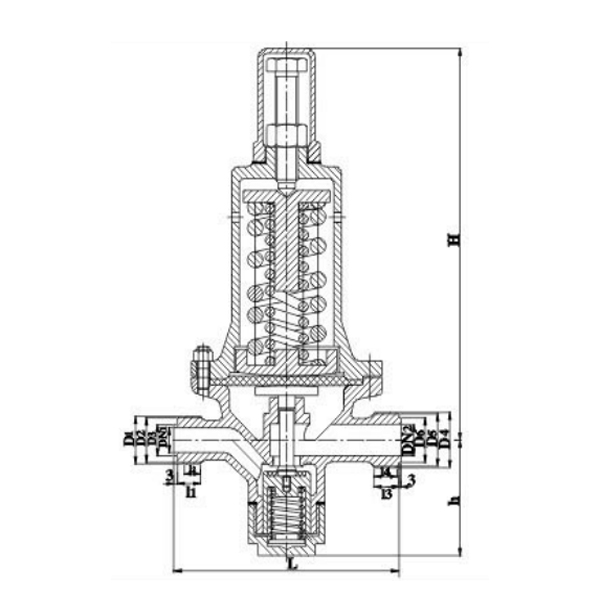

    2. Dimensions


DN1

DN2

L

h

D1

D2

D3

I1

I2

D4

D5

D6

I3

I4

kg

15

20

263

99

M36×2

33

22

22

5

M39×2

36

25

23

5

6.57
