| Quantity: 0 pieces |
| Nominal weight: 3060kgs |
| Material: ZG200-400C |
| Holding power: Normal holding power |
| Surface treatment: Bituminous paint |
CB T711-95 Spek Anchor 3060kgs
Drawings and Parameters of CB T711-95 Spek Anchor 3060kgs:
Nominal Weight (kg) | A (mm) | C (mm) | D (mm) | L (mm) | E (mm) | B (mm) | F (mm) | G (mm) | H (mm) | Anchor Shackle (GB/T 547) |
3060 | 2155 | 1200 | 360 | 1650 | 380 | 802 | 520 | 228 | 276 | a17 |

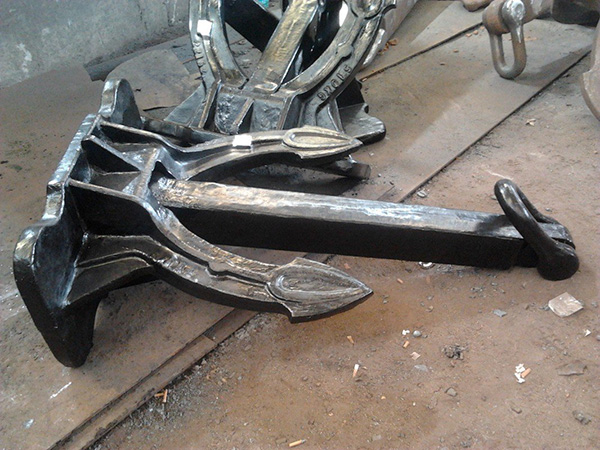

Pictures of CB T711-95 Spek Anchor:
