JIS F7363(S)-JIS 10K Cast Steel Gate Valve
  • JIS F7363(S)-JIS 10K Cast Steel Gate Valve
JIS F7363(S)-JIS 10K Cast Steel Gate Valve

JIS F7363(S)-JIS 10K Cast Steel Gate Valve

Quantity: 53 Pieces
Size: 100A
Pressure: 10K
Body Material: Cast Steel
Type: Gate Valve
  1. Manufactured in accordance to JIS F7400.

  2. Flange as per JIS B2220 - 5K

  3. Nominal Diameter: 50 ~ 400

  4. Materials:

(1). Body: Cast Steel;

(2). Seat: Stainless Steel;

(3). Disc: Stainless Steel;

(4). Stem: Stainless Steel

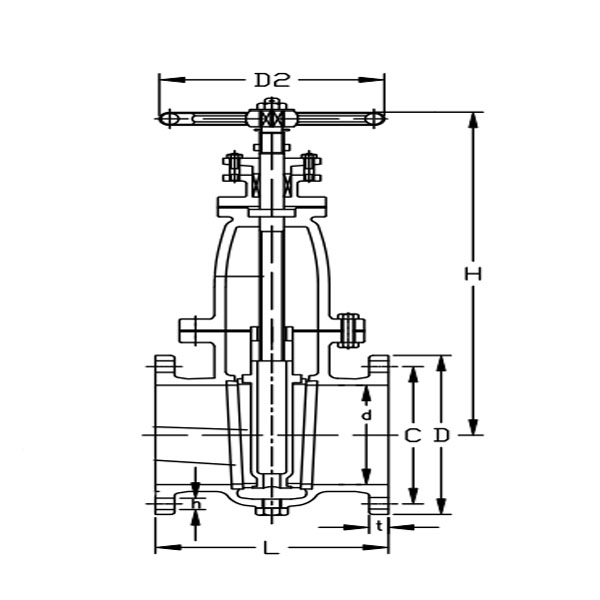

    5. Dimensions


Size

L

D

C

No

h

t

H

D2

kg

100

230

200

165

8

19

20

430

180

38.2

JIS F7363(S)-JIS 5K Cast Steel Gate Valve.jpgJIS F7363(S)-JIS 5K Cast Steel Gate Valve.jpg
