Quantity: 29 Pieces |
Size: 50A |
Pressure: 10K |
Body Material: Cast Steel |
Type: Angle |
The flanges shall conform to nominal pressure 10K of JIS B2210
The name plate shall be specified by purchaser as required
Materials:
(1). Body: Cast Steel;
(2). Bonnet: Cast Steel;
(3). Handwheel: Cast Iron;
(4). Disc: Bronze/Stainless Steel;
(5). Valve Seat: Bronze/Stainless Steel;
(6). Packing Bush: Bronze/Stainless Steel;
(7). Stem: Bronze/Stainless Steel;
(8). Washer For Stem: Bronze/Stainless Steel;
(9). Bonnet Bush: Bronze;
(10). Packing Bush: Bronze;
(11) Packing Gland: steel;
(12). Stud Bolt: Steel;
(13). Stud Bolt: Steel;
(14). Hexagon Nut: Steel;
(15). Hexagon Nut: Steel;
(16). Hexagon Nut: Steel;
(17). Lock Pin: Steel;
(18). Split Pin: Brass;
(19). Disc Lock Washer: Brass/Stainless Steel;
(20). Packing: Non Asbestos;
(21). Gasket: Non Asbestos

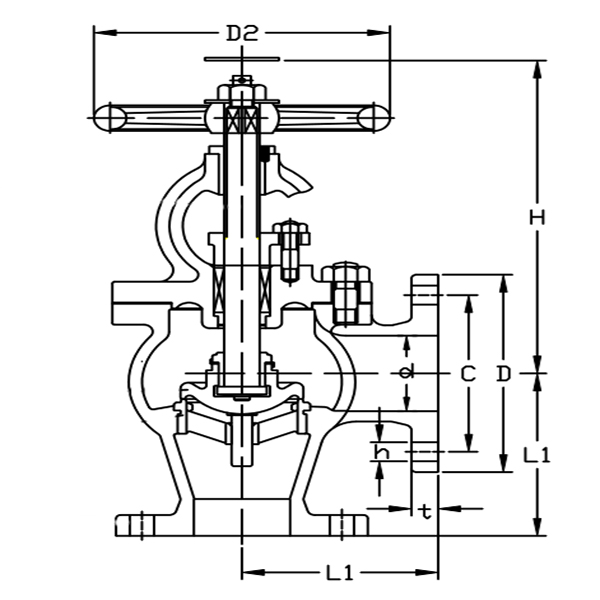

4. Dimensions
Type | Size | L1 | D | C | No. | h | t | H | D2 |
F7320 10K | 50 | 120 | 155 | 120 | 4 | 19 | 16 | 240 | 160 |
