Quantity: 0 Pieces |
Size: 32A |
Pressure: 10K |
Body Material: Bronze |
Type: Y |
Fluid condition & Max working pressure:
(1). Fluid condition: JIS 5K and 10K;
(2). Steam of 220 degree: 5 and 10;
(3). Air and Gas: 5 and 10;
(4). Non-Shock water up to 120 degree: 7 and 14
2. Materials:
(1). Body: Bronze;
(2). Bonnet: Bronze;
(3). Wire Gauze: Stainless Steel;
(4). Stud Bolt: Steel;
(5). Hexagon Nut: Steel;
(6). Plug: Brass
(7). Gasket: Non Asbestos

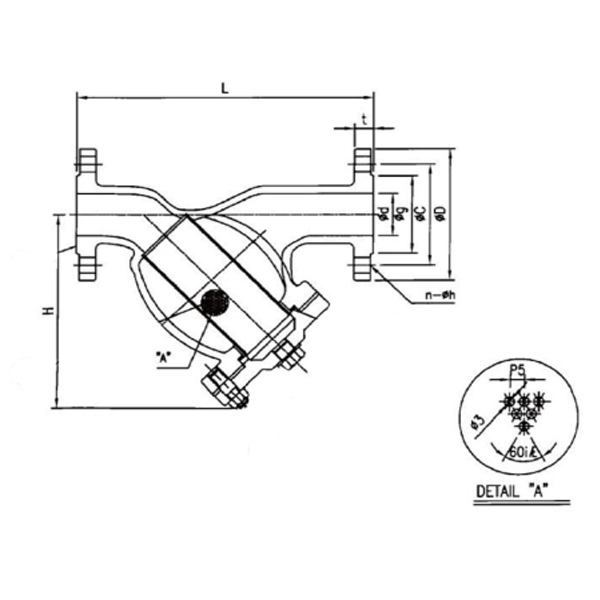

3. Dimensions
JIS F7220 | Size | d | D | C | N-h | t | L | H | kg |
10K | 32A | 32 | 135 | 100 | 4-19 | 16 | 260 | 164 | 8.99 |
