GBT589 Marine Stainless Steel Flange Check Valve
  • GBT589 Marine Stainless Steel Flange Check Valve
GBT589 Marine Stainless Steel Flange Check Valve

GBT589 Marine Stainless Steel Flange Check Valve

Quantity: 0 Pieces
Size: DN80
Pressure: 1.0 MPa
Body Material: Stainless Steel
Type: A and AS
  1. Applicable Medium: The temperature is not lower than -165 degree liquefied gas, Corrosive medium

  2. Materials of Main Parts:

(1). Body: Stainless Acidproof Steel;

(2). Cover: Stainless Acidproof Steel;

(3). Disc: Stainless Steel Acidproof Steel;

(4). Fastener: Stainless Steel

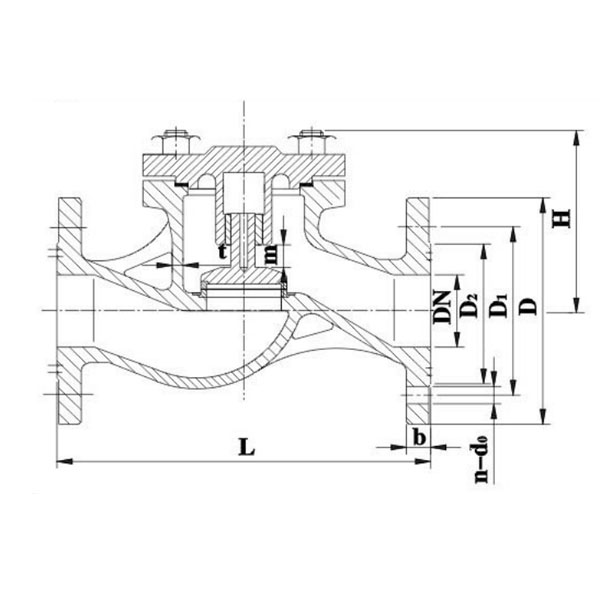

    3. Dimensions

Mpa

DN

L

H ≈

t

D

D1

D2

d

b

n

Th

D

m

kg

1.0

80

310

151

6

170

138

118

15

14

8

M14

140

24

13.4

GBT589 Marine Cast Steel Flange Check Valve.jpgGBT589 Marine Cast Steel Flange Check Valve.jpg
