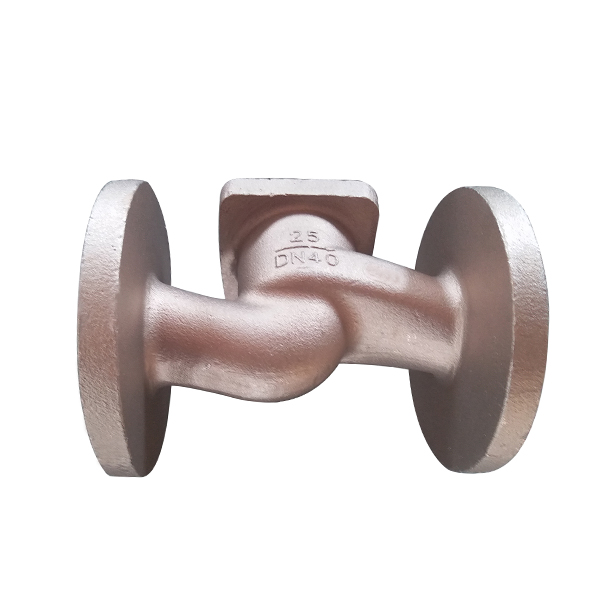

GBT589 DN40 Marine Bronze Check Valve
  • GBT589 DN40 Marine Bronze Check Valve
GBT589 DN40 Marine Bronze Check Valve

GBT589 DN40 Marine Bronze Check Valve

Quantity: 0 Pieces
Size: DN40
Pressure: 0.6 MPa
Body Material: Cast Tin Bronze
Type: AS
  1. Applicable Medium: Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam

  2. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze

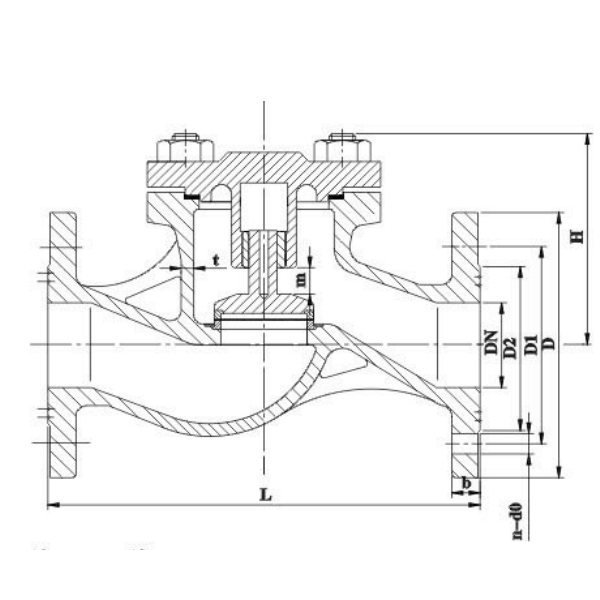

   3. Dimensions

PN

(Mpa)

DN

(mm)

L

H





D

D1

D2

d

b

n

Th.

m

kg

0.6

40

200

101

5

130

100

80

14

16

4

M12

12

7.1

GBT589 DN40 Marine Bronze Check Valve.jpgGBT589 DN40 Marine Bronze Check Valve1.jpg
