CBT692-1994 Paint a cabin respiration valve
  • CBT692-1994 Paint a cabin respiration valve
CBT692-1994 Paint a cabin respiration valve

CBT692-1994 Paint a cabin respiration valve

Quantity: 0 Pieces
Size: DN100 DN150
Pressure: 0.021MPa
Body Material: Cast Iron
Type: A, AS
  1. Apply to Lieu: Pressure vacuum tuby road breathing freely.

  2. DN: 100 ~ 150;

  3. Materials of main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Guide rod: Stainless Steel;

(4). Steam: Aluminum Bronze

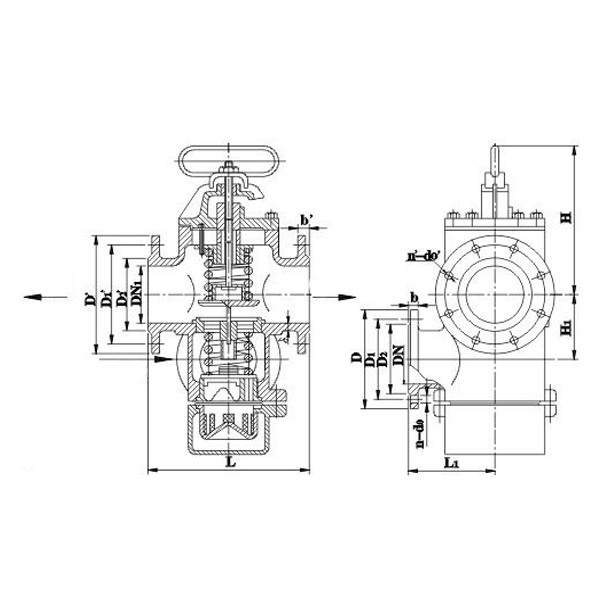

    4. Dimensions

DN

DN1

D

D1

D2

b

d

n

Th

kg

100

150

190

158

138

14

15

8

M14

38.32

CBT692-1994 Paint a cabin respirstion valve.jpgCBT692-1994 Point a Carbin Respiration Valve (B Type)1.jpg
