Quantity: 0 Pieces |
Size: DN20 ~ 100 |
Pressure: 0.4MPa |
Body Material: Cast Iron |
Type: A, AS |
Available medium: Lubricant oil, Fuel oil.
Materials of main parts:
(1). Body: Cast Iron;
(2). Cover: Cast Iron;
(3). Disc: Aluminum Bronze;
(4). Mesh: Stainless Steel

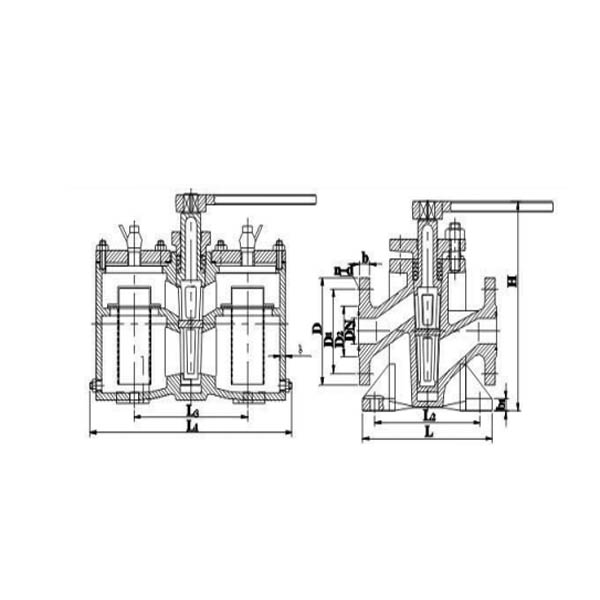

Dimensions
DN | H | L1 | L | t | D | D1 | D2 | b | d | Th. | L2 | L3 | n | d | kg |
100 | 538 | 665 | 340 | 10 | 190 | 158 | 138 | 15 | 15 | M14 | 300 | 380 | 4 | 15 | 124 |
