GBT588 DN80 Bronze Globe Valve
  • GBT588 DN80 Bronze Globe Valve
GBT588 DN80 Bronze Globe Valve

GBT588 DN80 Bronze Globe Valve

Quantity: 26 Pieces
Size: DN 80
Pressure: 1.0MPa
Body Material: Cast Tin Bronze
Type: BS
  1. Applicable Medium: Sea water, Fresh water, Lubricanting oil, Fuel oil t≤250℃ steam

  2. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Stem: Aluminum Bronze

   3. Dimensions

PN

(Mpa)

DN

(mm)

L

H1

H





D

D1

D2

d

b

n

Th.

D

S

m

kg

1.0

80

125

125

304

6

170

138

118

15

14

8

M14

160

14

24

17.6

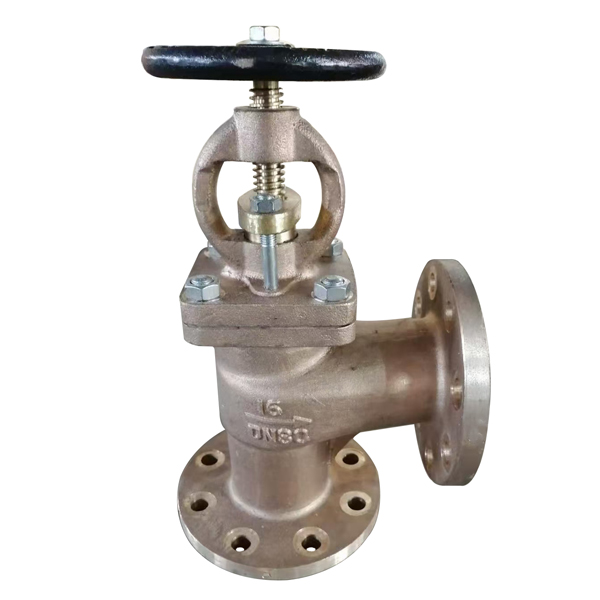

GBT588 DN80 Bronze Globe Valve.jpg

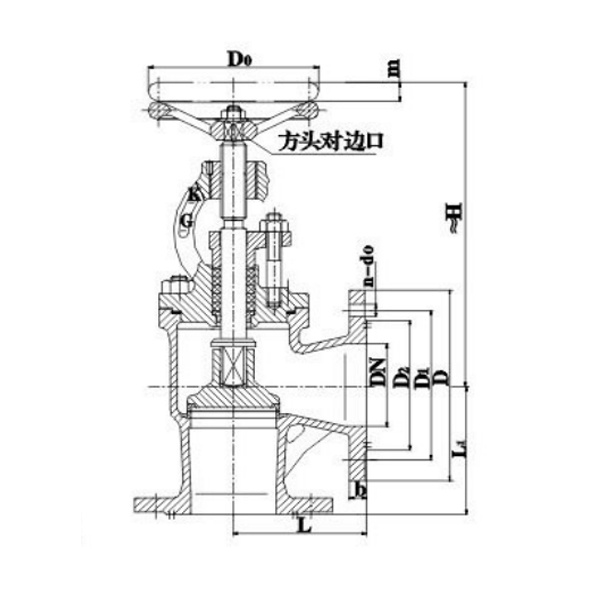

   4. Drawing

GBT588 DN25 Bronze Globe Valve.jpg
