GBT596-83 Marine Bronze Male Thread Stop Check Valve
  • GBT596-83 Marine Bronze Male Thread Stop Check Valve
GBT596-83 Marine Bronze Male Thread Stop Check Valve

GBT596-83 Marine Bronze Male Thread Stop Check Valve

Quantity: 0 Pieces
Size: DN10
Pressure: 4.0 MPa
Body Material: Cast Aluminum Bronze
Type: B
  1. Applicable Medium: Sea Water, Fresh Water, Lubricanting Oil, Fuel Oil, t≤400Degree Steam.

  2. Nominal Diameter: 10 to 30

  3. Materials of Main Parts:

(1). Body: Cast Aluminum Bronze;

(2). Cover: Aluminum Bronze;

(3). Disc: Aluminum Bronze;

(4). Steam: Aluminum Bronze

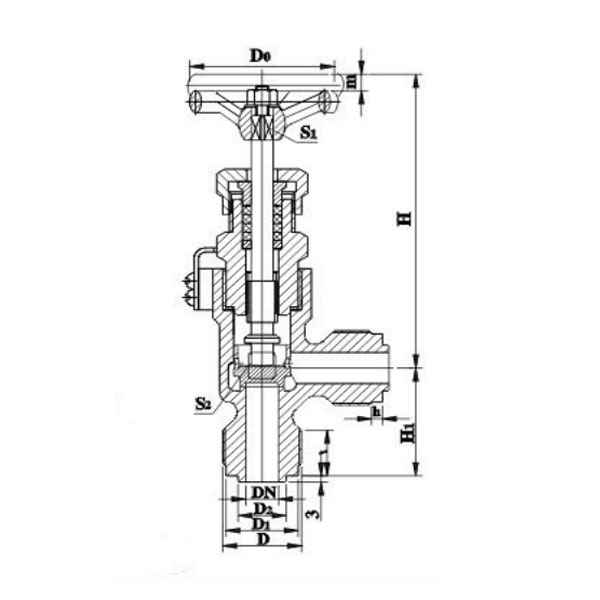

   4. Dimensions

Mpa

DN

L

H ≈

H1

D

D1

D2

I

L1

S2

D

S1

m

kg

4.0

10

94

128

20

M27×1.5

24.8

14

16

3

27

80

8

7

1.00

GBT596-83 Marine Bronze Male Thread Stop Check Valve (2).jpgGBT596-83 Marine Bronze Male Thread Stop Check Valve (2).jpg
