GBT5744 DN50 Quick Shutting Valve
  • GBT5744 DN50 Quick Shutting Valve
GBT5744 DN50 Quick Shutting Valve

GBT5744 DN50 Quick Shutting Valve

Quantity: 1 Pieces
Size: DN50
Pressure: 0.25 MPa
Body Material: Cast Steel
Type: AS,AQ,ASS,AQS
  1.  Applicable Medium: Lubricanting Oil, Fuel oil and other oil

  2. Materials of Main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Cylinder Body: Cast Aluminum Bronze;

(4). Disc: Carbon Steel;

(5). Stem: Stainless Steel;

(6). Piston: Zine Brass

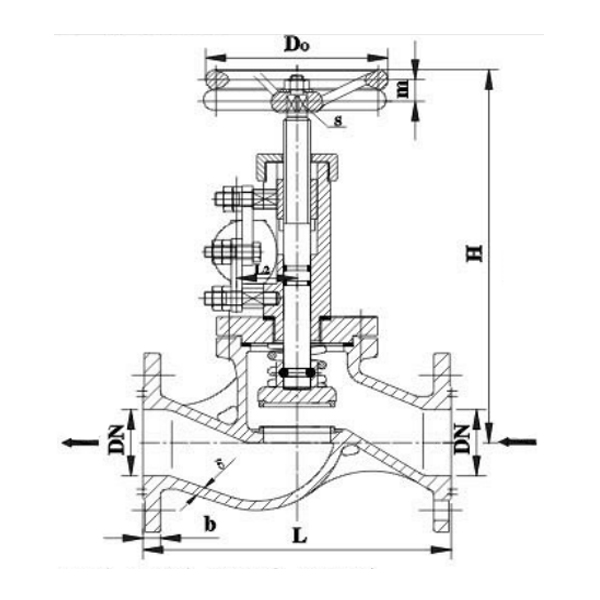

   3. Dimensions

DN

(mm)

L

(AS)

H

(AS)

L1

L2

H1

thickness

D

D1

D2

b

d

n

Th.

D

S

m

V

cm²

kg

50

230

283

143

49

65

7

135

103

84

13

15

6

M14

140

12

15

27

11.4

GBT5744 DN50 Quick Shutting Valve.jpgGBT5744 DN50 Quick Shutting Valve.jpg
